Item: W1828 | Model: W1828
Image for W1828

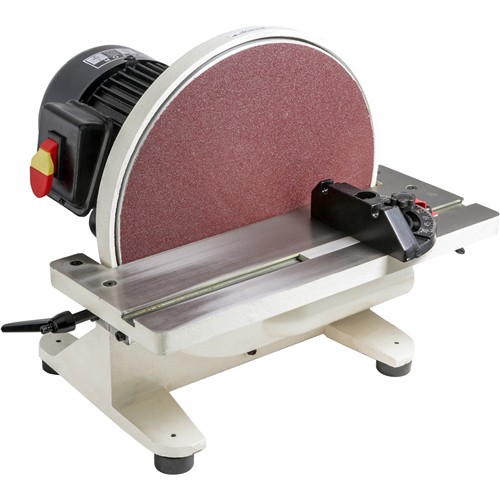

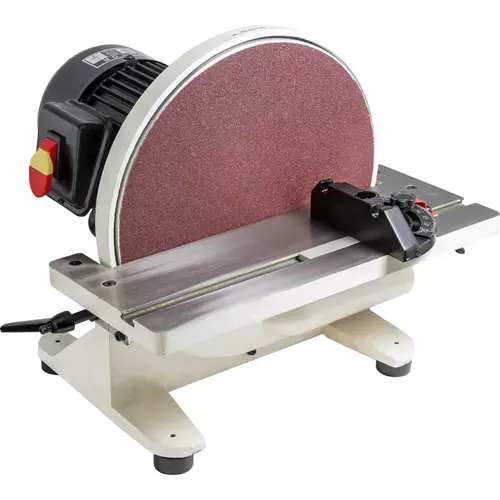

Shop Fox W1828 - 12" Disc Sander

3.7 (10)
5
6
3
1
2
1
1
2
$465.00

Shop Fox W1828 12" Disc Sander

Have confidence in your finish results.

This production-style 12" Disc Sander is ideal for shaping and smoothing edges, squaring end-cuts, and truing simple and compound miters.

The precision-ground cast-iron table adjusts for bevel sanding up to 45°.

The 1 HP totally enclosed fan-cooled direct drive motor spins at 1,700 RPM, which is ideal for wood sanding applications.

The W1828 uses 12" pressure sensitive adhesive sanding discs. Replacement sanding discs, are available in a variety of grits.

The W1828 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1 HP, 110V, single-phase, 10A
  • Disc diameter: 12"
  • Disc speed: 1725 RPM
  • Disc backing type: PSA
  • Table tilt: 0-45°
  • Table size: 15-3/4" W x 4-1/2" D
  • Overall dimensions: 14-1/2"
  • Approximate shipping weight: 62 lbs.

FEATURES:

  • Two-year warranty!!
  • Precision-ground cast-iron table
  • 2" dust port
  • Ball bearing construction
  • Paddle switch with disabling key
  • Locking miter bar
  • Built-in dust port
  • Non-slip rubber feet

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

View More Details
Shipping

Accessories

Image for D1340 12" A/O Sanding Disc, 180 Grit PSA, 2 Pk. Item# D1340 $8.95 Add Image for D1338 12" A/O Sanding Disc, 120 Grit PSA, 2 Pk. Item# D1338 $8.95 Add Image for D1336 12" A/O Sanding Disc, 80 Grit PSA, 2 Pk. Item# D1336 $10.50 Add Image for T28084 12" S/C Sanding Disc, 100 Grit PSA, 2 pk. Item# T28084 $18.95 Add Image for D1341 12" A/O Sanding Disc, 220 Grit PSA, 2 Pk. Item# D1341 $8.95 Add
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Specification Sheet Manual Parts List Buy Parts
Overview

Shop Fox W1828 12" Disc Sander

Have confidence in your finish results.

This production-style 12" Disc Sander is ideal for shaping and smoothing edges, squaring end-cuts, and truing simple and compound miters.

The precision-ground cast-iron table adjusts for bevel sanding up to 45°.

The 1 HP totally enclosed fan-cooled direct drive motor spins at 1,700 RPM, which is ideal for wood sanding applications.

The W1828 uses 12" pressure sensitive adhesive sanding discs. Replacement sanding discs, are available in a variety of grits.

The W1828 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1 HP, 110V, single-phase, 10A
  • Disc diameter: 12"
  • Disc speed: 1725 RPM
  • Disc backing type: PSA
  • Table tilt: 0-45°
  • Table size: 15-3/4" W x 4-1/2" D
  • Overall dimensions: 14-1/2"
  • Approximate shipping weight: 62 lbs.

FEATURES:

  • Two-year warranty!!
  • Precision-ground cast-iron table
  • 2" dust port
  • Ball bearing construction
  • Paddle switch with disabling key
  • Locking miter bar
  • Built-in dust port
  • Non-slip rubber feet

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
