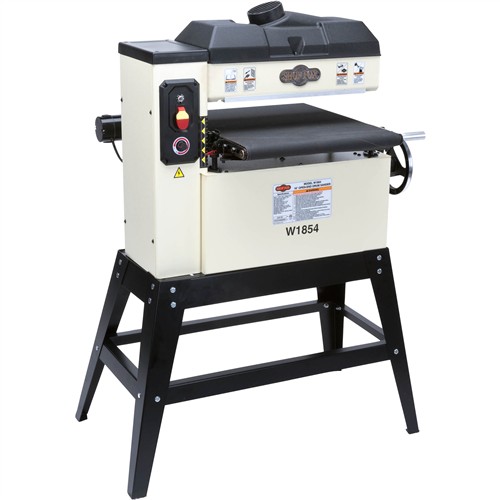

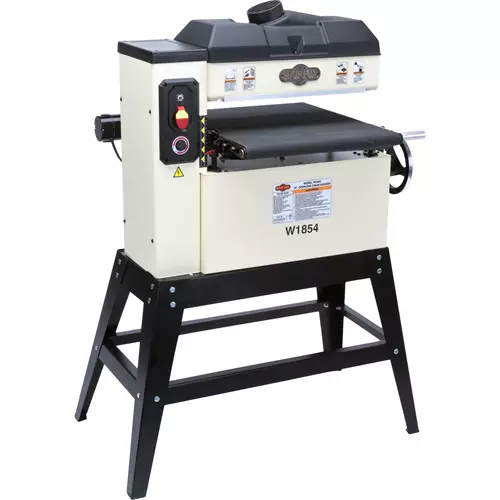

Shop Fox W1854 18" 1-1/2 HP Open-End Drum Sander with VS Feed

Our 18" Open-End Drum Sander offers a lot of sanding capacity in a small amount of floor space.

Sand stock up to 36" wide and 4-1/2" thick! Unlike other open-end drum sanders, the table moves up and down instead of the head.

This means drum support is much more rigid during sanding operations, giving you more consistent results.

Changing the sandpaper is easy and straightforward. Simply remove the top cover for unobstructed access.

The precision control of the electronic variable-speed conveyor allows you to find the perfect feed rate up to 12 feet per minute (FPM).

The W1854 manual was written by the U.S.-based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

CSA certified

SPECIFICATIONS:

• Sanding motor: 1-1/2 HP, 120V, single-phase, 13A
• Sandpaper speed: 2600, 3400 FPM
• Conveyor feed rate: 0-12 FPM
• Maximum stock dimensions: 36" wide x 4-1/2" thick
• Minimum board length: 6"
• Minimum board thickness: 1/8"
• Sanding drum size: 4"
• Dust collection port: 4"
• Footprint: 41-1/2" x 22-1/2"
• Overall size: 35-1/2" W x 22-1/2" D 50" H
• Approximate shipping weight: 235 lbs.

FEATURES:

• V-belt drive
• Steel construction
• 18" x 44-1/2" abrasive conveyor belt
• Variable-speed conveyor
• Stationary drum head stock
• Safety switch
• Uses 3" wide sandpaper roll
• Easy access for sandpaper changes

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the W1854 comes with a 2-year warranty.

Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.
