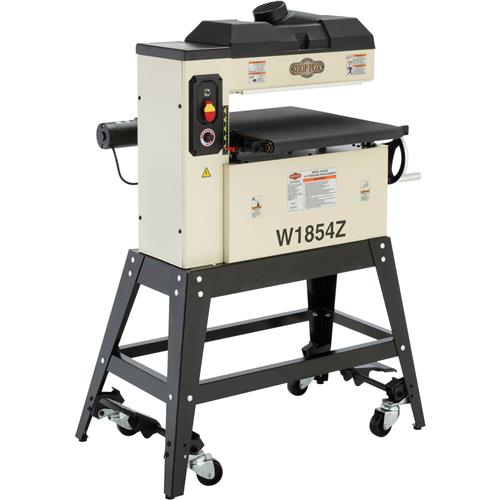

Shop Fox W1854Z - 18" 2 HP Open-End Drum Sander w/ VS Feed
Shop Fox W1854Z 18" 2 HP Open-End Drum Sander with VS Feed
A 36" capacity, open-end drum sander for precision on every pass.
Stop manually sanding wide panels – this efficient drum sander gives professional results for tabletops, doors, and other large workpieces.
The open-end design allows you to sand workpieces twice as wide as the drum by flipping them over and sanding in two passes. You’ll get a 36" wide capacity for a fraction of the cost of larger industrial sanders.
Additional features like variable-speed feed, a hook-and-loop drum for easy sandpaper changes, and a built-in mobile base make this an affordable and space-saving choice.
Whether you build custom cabinetry, run a small production furniture shop, or just enjoy DIY projects, this machine will give you a smooth surface on every board.
Key Features:
- Open-End Design: Easily sand boards up to 36" wide for a perfect finish on drawer fronts and glued-up panels.
- Electronic Variable Speed Conveyor: For effortless changes between 0-12 FPM so you can quickly adjust to different wood types.
- Dual Sandpaper Speeds: Combined with the variable-speed feed, allows further refinement for the exact finish you need.
- Stationary Drum Headstock: The table moves up and down instead of the head for greater stability and less vibration during sanding.
- Hook-and-Loop Sandpaper Drum: The sandpaper is easy to use and replace; no cleaning and scraping like with adhesive-backed paper.
- Spring-Loaded Pressure Rollers: They provide consistent pressure and cause less snipe for uniform sanding results.
- Built-In Mobile Base: Lets you easily relocate the machine throughout your shop.
Specifications:
- Main motor: 2 HP, 120V, single-phase, 16A
- Conveyor motor: 90W, 0.92A
- Sandpaper speed: 2600, 3400 FPM
- Conveyor feed rate: 0-12 FPM
- Max. stock dimensions: 36" W x 4-1/2" thick
- Min. board length: 6"
- Min. board thickness: 1/8"
- Sanding: 4" Dia., hook-and-loop
- Dust collection port: 4"
- Footprint: 37" x 20-1/2"
- Overall size: 41" L x 22-1/2" W x 50" H
- Approximate shipping weight: 224 lbs.
Stop wasting time on manual sanding and open new possibilities with the W1854Z Open-End Drum Sander.
Shop Fox owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.
Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the W1854Z comes with a 2-year warranty.
Made in an ISO 9001 factory
Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.
