Item# M1011 Model# M1011

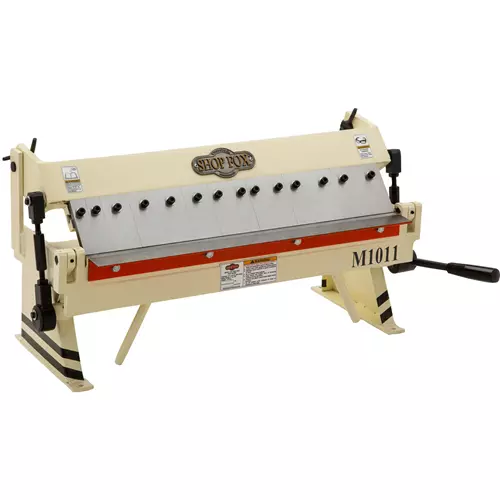

Shop Fox M1011 - 24" Pan and Box Brake

$674.95
+$179.00  Freight
+$0.00  Oversize

Shop Fox M1011 24" Box and Pan Brake

The M1011 Pan and Box Brake from Shop Fox is an indispensable tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures.

When bolted to a secure workbench, the M1011 bends mild steels up to 20-gauge thick, 24" wide, in a range in angles from 0° to 135°.

The removable and adjustable fingers can be installed in a variety of positions to accommodate varying widths of metal.

Like all Shop Fox pan and box brakes, the M1011 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The M1011 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your pan and box brake.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the pan and box brake may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Max. workpiece width: 24"
  • Max. bending capacity: 20-gauge
  • Box fingers: 1" (x2), 2" (x4), 3" (x2), 4" (x2)
  • Brake angle: 0-135°
  • Footprint: 10-1/2" x 26-1/4"
  • Max. box depth: 1-3/4"
  • Overall dimensions: 30-11/16" W x 14" D x 11" H
  • Approximate shipping weight: 125 lbs.

FEATURES:

  • Two-year warranty!!
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

Shop Fox M1011 24" Box and Pan Brake

The M1011 Pan and Box Brake from Shop Fox is an indispensable tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, gussets, boxes, or fixtures.

When bolted to a secure workbench, the M1011 bends mild steels up to 20-gauge thick, 24" wide, in a range in angles from 0° to 135°.

The removable and adjustable fingers can be installed in a variety of positions to accommodate varying widths of metal.

Like all Shop Fox pan and box brakes, the M1011 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The M1011 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your pan and box brake.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the pan and box brake may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Max. workpiece width: 24"
  • Max. bending capacity: 20-gauge
  • Box fingers: 1" (x2), 2" (x4), 3" (x2), 4" (x2)
  • Brake angle: 0-135°
  • Footprint: 10-1/2" x 26-1/4"
  • Max. box depth: 1-3/4"
  • Overall dimensions: 30-11/16" W x 14" D x 11" H
  • Approximate shipping weight: 125 lbs.

FEATURES:

  • Two-year warranty!!
