Item# W1827 Model# W1827

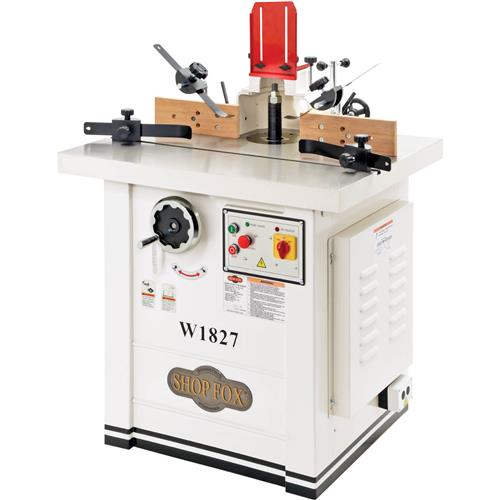

Shop Fox W1827 - 5 HP Shaper

$3,024.99
+$239.00  Freight
+$0.00  Oversize

W1827 Shop Fox 5 HP Shaper

This 5 HP Spindle Shaper is sized to handle large raised-panel doors and extra-wide moulding profiles.

With three included spindle sizes (3/4", 1", 11/4") and four spindle speeds ranging from 3600 RPM to 10,000 RPM, choosing the right shaper cutter for the job will never again be a problem.

The long spindle lengths also allow total flexibility for running tall cutters or stacking multiple cutters and spacers.

Its heavy cast-iron split adjustment fence lets you dial in just the right amount of offset for edge profiling, and the heavy cast-iron table and stable base are made for the toughest jobs.

This Shaper is made for production!

SPECIFICATIONS:

  • Motor: 5 HP, 220V, single-phase, 3450 RPM, 25A
  • Precision-ground cast-iron table size: 35-1/2" x 28" x 2-5/16"
  • Floor-to-table height: 34-3/4"
  • Spindle travel: 3-1/4"
  • Spindle sizes: 3/4", 1", 1-1/4"
  • Max. cutter heights (per spindle): 4-1/4", 4-5/8", 5-1/8"
  • Spindle openings: 2", 3", 3-1/2", 7"
  • Spindle speeds: 3600, 5100, 8000, 10,000 RPM
  • Max. cutter diameter: 5-7/8"
  • Table counterbore: 7"
  • Approximate shipping weight: 615 lbs.

FEATURES:

  • Two-year warranty!!
  • Cast-iron, independently adjustable fence
  • Push button controls with magnetic safety switch and thermal overload protection
  • 4" dust port
  • Micro-Adjustable fence
  • Spindle height scale
  • Spindle spacers and nuts, hold-down assemblies and table inserts
  • FWD/REV spindle rotation switch
