Item# M1018 Model# M1018

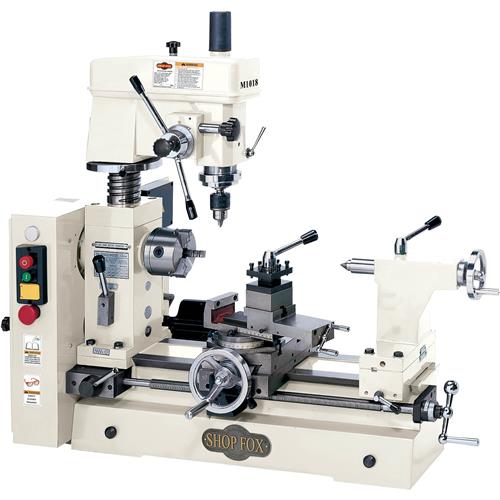

Shop Fox M1018 - Small Combo Lathe / Mill

$1,924.99
+$149.00  Freight
+$0.00  Oversize
Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, and drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2" faceplate, 4" 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2" swing over bed, 11-1/2" swing over saddle, 19-1/4" distance between centers, 3/4" spindle bore, and MT#3 tapers.

Specifications

  • Lathe motor: 3/4 HP, 110V, single-phase
  • Lathe swing over bed: 16-1/2"
  • Lathe swing over saddle: 11-1/2"
  • Mill swing: 12"
  • Distance between centers: 19-1/4"
  • Lathe cross slide travel: 4-1/2"
  • Lathe compound travel: 3"
  • Lathe carriage travel: 14-3/4"
  • Mill spindle travel: 3-1/2"
  • Lathe spindle speeds: 7 @ 160, 300, 375, 470, 600, 870, 1360 RPM
  • Mill spindle speeds: 14 @ 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 RPM
  • Spindle bore: 3/4"
  • Lathe spindle taper: MT#3
  • Mill drill chuck taper: MT#3
  • Drawbar thread: 3/8"-16
  • Drilling capacity—steel cast-iron: 7/8"
  • Bed width: 5-1/2"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 1-1/2"
  • Leadscrew: 7/8"-6 TPI
  • Longitudinal feeds: 8 @ 0.002"-0.0069"
  • Max. tool bit size: 1/2"
  • Thread range (inch): 27 @ 8-120 TPI
  • Thread range (metric): 18 @ 0.2-3.0mm
  • Includes 1/2" drill chuck, 2 dead centers, 4" 3-jaw chuck, 4-way tool post, 5" back plate, 9-1/2" faceplate, change gears, MT#3 chuck arbor, hex & combo wrenches
  • Overall size: 42"L x 23"W x 35"H
  • Approximate shipping weight: 478 lbs.
  • View More Details
    Add to Cart
    Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

    Accessories

    Recommended For You

    Overview
    Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, and drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2" faceplate, 4" 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2" swing over bed, 11-1/2" swing over saddle, 19-1/4" distance between centers, 3/4" spindle bore, and MT#3 tapers.

    Specifications

  • Lathe motor: 3/4 HP, 110V, single-phase
  • Lathe swing over bed: 16-1/2"
  • Lathe swing over saddle: 11-1/2"
  • Mill swing: 12"
  • Distance between centers: 19-1/4"
  • Lathe cross slide travel: 4-1/2"
  • Lathe compound travel: 3"
  • Lathe carriage travel: 14-3/4"
  • Mill spindle travel: 3-1/2"
  • Lathe spindle speeds: 7 @ 160, 300, 375, 470, 600, 870, 1360 RPM
  • Mill spindle speeds: 14 @ 117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 RPM
  • Spindle bore: 3/4"
  • Lathe spindle taper: MT#3
  • Mill drill chuck taper: MT#3
  • Drawbar thread: 3/8"-16
  • Drilling capacity—steel cast-iron: 7/8"
  • Bed width: 5-1/2"
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 1-1/2"
  • Leadscrew: 7/8"-6 TPI
  • Longitudinal feeds: 8 @ 0.002"-0.0069"
  • Max. tool bit size: 1/2"
  • Thread range (inch): 27 @ 8-120 TPI
  • Thread range (metric): 18 @ 0.2-3.0mm
  • Includes 1/2" drill chuck, 2 dead centers, 4" 3-jaw chuck, 4-way tool post, 5" back plate, 9-1/2" faceplate, change gears, MT#3 chuck arbor, hex & combo wrenches
  • Overall size: 42"L x 23"W x 35"H
  • Approximate shipping weight: 478 lbs.
