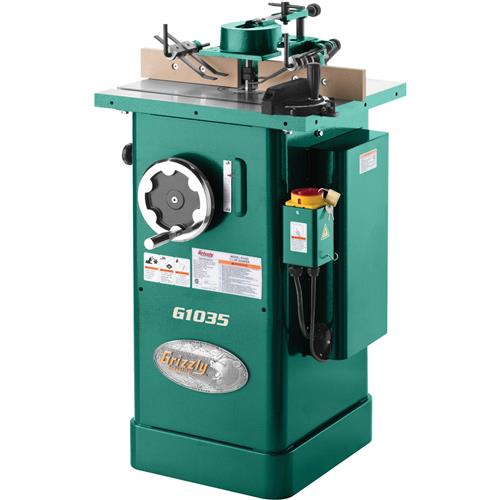

G1035 1-1/2 HP Shaper
Power, precision, and control unmatched by any router.
Shapers are used to create a wide variety of shapes, such as decorative edges, moldings, and raised panels. The G1035 1-1/2 HP Shaper was built with plenty of muscle to mill a wide variety of profiles.
The 1-1/2 HP motor rotates the interchangeable spindles at 7000 and 10,000 RPMs. The forward/reverse switch that starts, stops, and reverses spindle rotation, can be disabled and locked with a padlock.
The G1035 comes with one aluminum insert and one cast-iron insert, giving you three possible diameter openings in the shaper table surface. Use the smallest opening that a particular cutter will allow. This offers more support for the workpiece and reduces the amount of chips that can fall into the machine.
The independently adjustable cast-iron fence screws to the precision-ground cast-iron table. Hold-down springs are used to hold the workpiece flat on the table and snug against the fence.
Additional features include a handwheel for spindle height adjustments and a spindle height scale that displays the height position of the spindle in inches–all for less than the price of a router and router table!
The G4840 3" Dust Hood is available to connect the G1035 to any dust collection hose.
Like all Grizzly shapers, the G1035 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G1035 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.
The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the shaper may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 12A/6A
- Maximum cutter height: 2-1/2"
- Maximum cutter diameter: 5"
- Spindle diameters: 1/2", 3/4"
- Spindle lengths: 2-3/4", 3-1/2"
- Spindle capacity under nut: 2", 2-1/2"
- Spindle speeds: 7000, 10,000 RPM
- Spindle travel: 3"
- Table insert openings: 1-1/4", 3-1/2", 5"
- Table counterbore: 5" dia. x 7/16"
- Table size: 18" x 20-1/4"
- Floor-to-table height: 33-1/2"
- Footprint: 15-1/2"x 17-1/2"
- Overall dimensions: 22" W x 25" D x 40-1/2" H
- Approximate shipping weight: 221 lbs.
FEATURES:
- Two spindle speeds
- Motor reversing switch
- Precision-ground cast-iron table
- Independently adjustable cast-iron fence with safety guard
- Hold-down springs
- Steel cabinet-type stand
- Cast-iron miter gauge and starting pins
