Item# G0610 Model# G0610

Grizzly G0610 - 11-1/4" Dovetail Machine

$3,595.00
+$179.00  Freight
+$0.00  Oversize

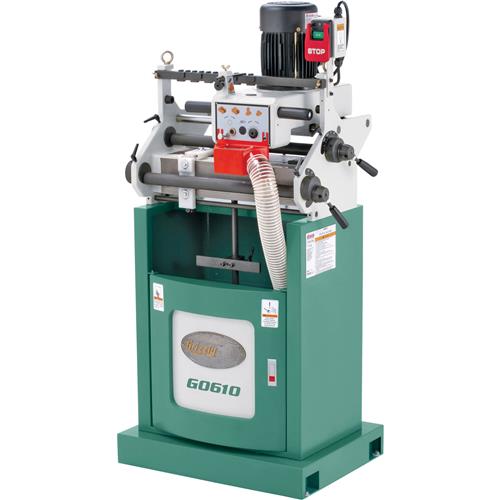

G0610 11-1/4" Dovetail Machine

Make strong and attractive half-blind dovetailed joints faster than you ever thought possible.

The powerful 1 HP induction motor of the G0610 11-1/4" Dovetail Machine makes cutting joints quick while the four-sided template makes it easy to change styles.

Quick cam clamps make for fast changes and having all adjustments clearly described right on the machine insures an easy set-up and adjustment.

Increase your shop's profits by creating your own four-sided drawers in just a few minutes each.

Prewired for 110V, the G0610 can plug into a standard 110V outlet or can be converted to operate on a 220V power supply. If you prefer 220V, refer to the Voltage Conversion instructions in the manual.

Like all Grizzly dovetail machines, the G0610 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The G0610 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your bandsaw.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dovetail machine are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 10A/5A
  • Table size: 19-1/2" x 7"
  • Floor to table height: 38-5/16"
  • Overall size: 30-1/2" W x 22-1/2" D x 57" H
  • Number of spindles: 1
  • Spindle speed: 18,500 RPM
  • Dovetail bit: 10° x 5/8" long
  • Dovetail shank: 1/2"
  • Maximum dovetail height: 3/4"
  • Minimum dovetail height: 3/16"
  • Maximum thickness: 1-3/4"
  • Minimum thickness: 13/32"
  • Maximum stock size: 11-1/4" W x 28" L
  • Minimum stock size: 2-3/8" W x 7-7/8" L
  • Approximate shipping weight: 373 lbs.

FEATURES:

  • Precision-ground cast iron table
  • Cast-aluminum carriage
  • Steel stand
  • Hardened and ground chrome steel slide ways
  • Ball-bearing linear guides
  • Four-way dovetail template
  • Micro-adjustable spindle head
  • Workpiece stops
  • Quick cam clamp
  • 4" dust port
  • Spring-loaded carriage for smooth operation
