Grizzly T25101 - 15" Benchtop English Wheel
T25101 15" Benchtop English Wheel
Shape sheet metal just like the professionals

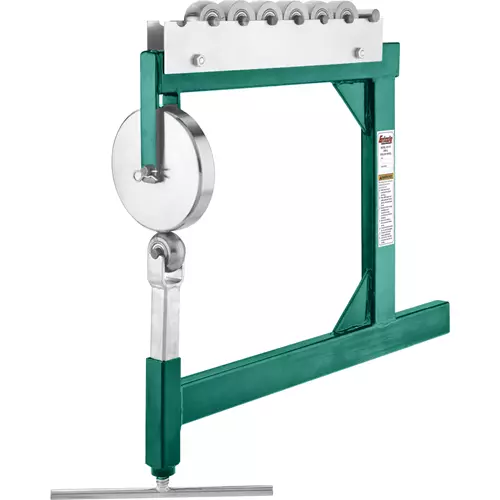

The T25101 15" Benchtop English Wheel is a bench-mounted tool that forms complex curves in flat sheet metal, such as aluminum or steel.
The wheels are adjusted to exert pressure on the sheet metal, then the sheet is moved back and forth through the wheels to stretch the metal and produce customized curves.
It features 7 lower wheel contours with a built-in storage rack, a 15-3/8" throat capacity, hardened steel wheels and gusseted steel frame with powder-coated finish.
The 2" diameter lower wheel contours include: flat, 1/2" radius, 1" radius, 1-1/2" radius, 2-1/2" radius, 5" radius, 9" radius.
Upper wheel is 5-7/8" diameter and has a flat contour.
Frame size is 1" D x 23-1/4" W x 19-11/16" H.
Like all Grizzly English Wheels, the T25101 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The T25101 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your wheel.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the English wheel may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Throat capacity: 15-3/8"
- Mild steel capacity: 16-gauge
- Aluminum capacity: 16-gauge
- Upper wheel diameter: 5-7/8"
- Upper wheel contour: flat
- Lower wheel diameters: 2"
- Lower wheel contours: flat, 1/2" radius, 1" radius, 1-1/2" radius, 2-1/2" radius, 5" radius, 9" radius
- Overall dimensions: 1" W x 23-1/4" D x 19-11/16" H
- Approximate shipping weight: 30 lbs.
- Quick-release lever
- Bench mounted
- 1 Upper wheel, 7 lower wheels
- Wheel storage rack
