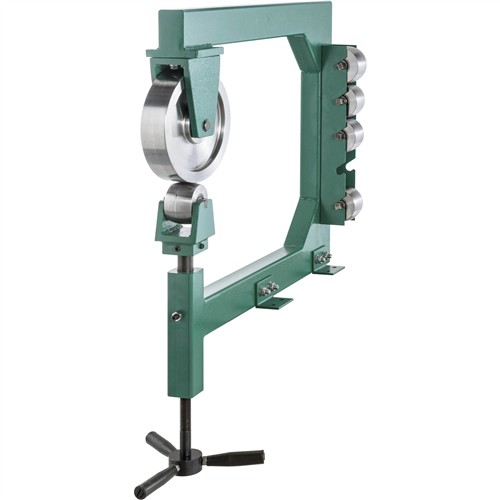

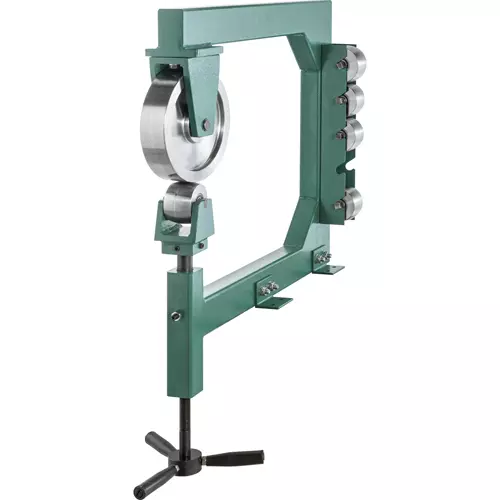

T28964 22" Heavy-Duty Benchtop English Wheel
Fabricate compound curves and other workpieces with an English wheel.
Interested in restoring classic cars or custom metal fabrication? The T28964 Heavy-Duty Benchtop English Wheel can help with that.
It comes with easy bench mount brackets and a solid welded frame so there is no flex when making critical bends.
Choose from five different radius lower wheels, adjust the screw for pressure, and shape against the anvil wheel.
Achieve smooth and even curves with ease.
Like all Grizzly English Wheels, the T28964 comes with a 1-year warranty.
The T28964 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
The complete and easy-to-read manual makes it easier to assemble and maintain your wheel.
Parts for the English wheel may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Throat capacity: 22"
- Mild steel capacity: 16-gauge
- Aluminum capacity: 16-gauge
- Upper wheel diameter: 8"
- Upper wheel contour: flat
- Lower wheel diameters: 3"
- Lower wheel contours: 3", 4", 5", 6", 8" radius
- Overall dimensions: 6" W x 29" D x 33" H
- Approximate shipping weight: 110 lbs.
FEATURES:
- Quick-release lever
- Bench mount brackets
- Wheel storage rack
- Solid welded frame
- 5 Radius wheels and 1 upper wheel
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
