Item# G0600 Model# G0600

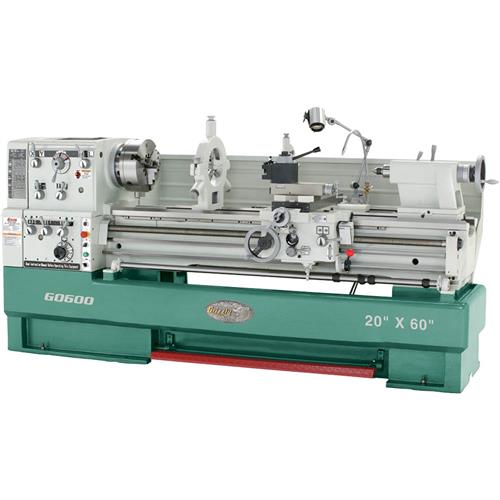

Grizzly G0600 - 20" x 60" 3-Phase Big Bore Metal Lathe

20" x 60" 3-Phase Big Bore Metal Lathe-img-0
20" x 60" 3-Phase Big Bore Metal Lathe-img-1
20" x 60" 3-Phase Big Bore Metal Lathe-img-2
20" x 60" 3-Phase Big Bore Metal Lathe-img-3
20" x 60" 3-Phase Big Bore Metal Lathe-img-4
20" x 60" 3-Phase Big Bore Metal Lathe-img-5
20" x 60" 3-Phase Big Bore Metal Lathe-img-6
20" x 60" 3-Phase Big Bore Metal Lathe-img-7
$18,500.00
+$2,250.00 Freight
+$0.00  Oversize
  • Motor: 10 HP
  • Swing: 20 in.
  • Distance between centers: 60 in.
  • Spindle bore: 3.15 in.
  • Spindle type: D1-8 Camlock
  • Speeds: 25 – 1600 RPM
  • Tailstock taper: MT#5
  • Tailstock barrel travel: 7 in.
  • Shipping weight: 5758 lbs.

Hover to View Details

Add to Cart
Backordered - More on the way Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Accessories

Recommended For You

Overview

G0600 20" x 60" 3-Phase Big Bore Metal Lathe

Chuck-up any heavy work piece with confidence.

The G0600 20" x 60" 3-Phase Big Bore Metal Lathe has massive size and full capacities.

Whether you need to turn stainless, brass or large castings, its 13-3/4" wide bed, heavy-duty tailstock, excellent speed range, coolant pump, and powerful 10 HP motor will give you the best possible finishes.

What's more, it comes supplied with an auto apron stop so you can preset up to 4 different shoulders along the length of your shafting.

With a quick-change tool post, steady and follow rest, and hex drive feed rod for smooth, consistent motion, you have the flexibility needed to tackle any job quickly.

Like all Grizzly gunsmithing lathes, the G0600 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G0600 manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 10 HP, 220V, 3-phase, 28A
  • Coolant motor 1/8 HP, 0.6A
  • Swing over bed: 20"
  • Distance between centers: 60"
  • Swing over saddle: 12"
  • Swing over cross slide: 12"
  • Spindle bore: 3.15"
  • Spindle nose taper: MT#7
  • Spindle nose: D1-8 camlock
  • Spindle speeds: 12, 25–1600 RPM
  • Tailstock barrel taper: MT#5
  • Tailstock barrel travel: 7"
  • Cross slide travel: 12-3/4"
  • Compound travel: 5"
  • Range of threads (inches): 60 @ 2–112 TPI
  • Range of threads (metric): 47 @ 0.2–14 mm
  • Diametrical pitch range: 50 @ 4–112 DP
  • Modular pitch range: 39 @ 0.1–7 MP
  • Overall dimensions: 110-3/4" W x 45-1/4" D x 51" H
  • Approximate shipping weight: 5758 lbs.

FEATURES:

  • Hardened and precision-ground Meehanite bed casting
  • Universal quick change gear box for inch, metric, modular, and diametral pitches
  • Hardened and precision-ground headstock, quick change and apron gears run in an oil bath
  • One-shot lubrication on apron
  • Adjustable apron clutch
  • Cuts LH threads
  • Jog and emergency stop button
  • Foot brake

STANDARD EQUIPMENT:

  • 12" 3-Jaw scroll chuck
  • 14" 4-Jaw independent chuck
  • 17-3/4" faceplate
  • Thread dial
  • 4-position auto apron stop
  • Full length splash guard
  • Dual inch/metric dials
  • Quick change tool post and holder
  • #5–#7 Morse taper sleeve
  • Centers, service tools, tool box, leveling pads
  • Steady rest
  • Follow rest
  • Coolant system
  • LED worklight

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
