Grizzly PRO T32336 - 4-Gallon Oil-Free Quiet Series Air Compressor
T32336 4 Gallon Oil-Free Quiet Series Air Compressor
A low maintenance, ultra-quiet portable air compressor.
The Grizzly PRO T32336 4 Gallon Oil-Free Quiet Series Air Compressor is designed for portability with increased capacity over small "pancake" compressors. Whether you need a small compressor for your home shop or have a mobile crew using it on location, this unit will exceed your expectations.
The 20-gallon model can do everything the others can, but with 5–10 times the capacity, is better suited for larger jobs that require more air. Think of this as the large stationary jobsite compressor that can feed multiple framing or roofing nailers at the same time.
The T32336 has an operational sound rating of only 60 dB. Quieter than normal conversation, 60 dB is only slightly louder than a typical household refrigerator. So you’ll get not only better safety, but a contractor can walk a client through a jobsite and hold a normal conversation right next to the running compressor.
Compare this with a normal compressor sound rating of 90 dB, which is about equal to a lawnmower. It’s hard to describe just how striking the difference is—you really have to hear it to believe it.
The 2 HP motor runs at 1725 RPM with a maximum pressure of 125 PSI. This compressor delivers 5.6 CFM at 90 PSI and 6.2 CFM at 40 PSI.
The oil-free double piston pump design provides four times the life of most oil-free compressors, making for cleaner air emissions and lower maintenance costs as well. It also reduces the time needed for the tank to reach maximum pressure vs a single piston.

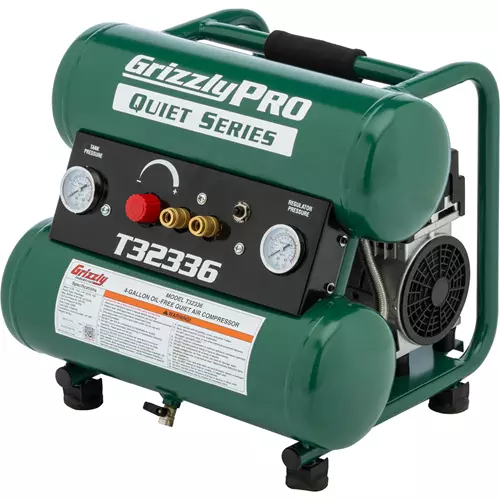

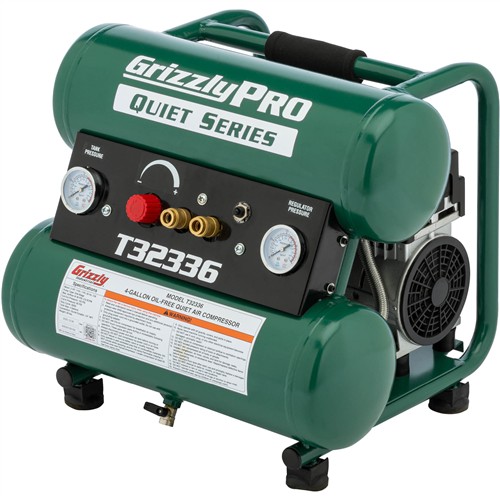

The T32336 features an easy-access and damage-protected control panel. The panel is home to the overload reset, dual quick connects, tank pressure gauge and output pressure gauge. The compressor comes with non-marring rubber feet to protect your floors.
Like all Grizzly air compressors, the T32336 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The T32336 manual was written by our U.S. based Technical Documentation Department and is packed with useful information on how to assemble and maintain your portable air compressor pump.
To order parts, or other services and inquiries, contact Mega by phone at 832-415-6995 or email at CS@megacompressor.com
- Motor: 2 HP, 110V, single-phase,
- Airflow capacity: 5.6 CFM at 90 PSI and 6.2 CFM at 40 PSI
- Maximum air pressure: 125 PSI
- Sound rating: 60 dB
- Overall size: 23" x 20" x 17"
- Approximate shipping weight: 72 lbs.
- Twin tank design protects
- Oil-free double piston pump design
- Quiet operating
- Safety valve
- Air regulator
- Quick coupler
