Grizzly T30491 - Tenoning Jig

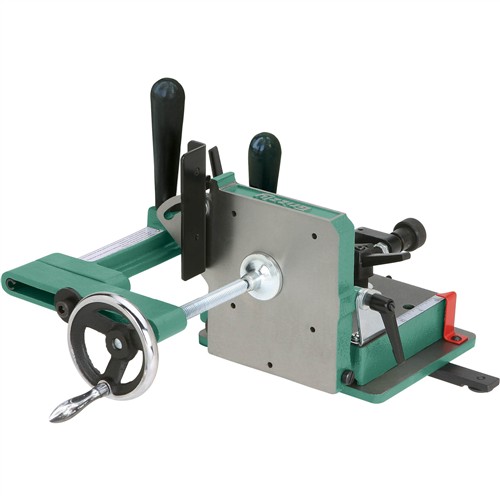

Grizzly T30491 Tenoning Jig
Make perfect tenons with this great tool for repetitive cuts to make exacting tenons.
A tenoning jig is designed to work with your table saw to make a tenon which will be part of a mortise and tenon joint. The fully adjustable T30491 Tenoning Jig fits left and right tilting table saws with 3/8" x 3/4" miter gauge slots while handling a stock up to 3-1/4" thick.
With the tenoning jig mounted in the miter slot of the table saw, the workpiece is clamped upright to the jig in various configurations so that the tenon cheek cuts can be made. Then the jig is removed and the workpiece is laid flat on the table saw to make the shoulder cuts.
The T30491 has an adjustable guide bar for removing any loose play for precise results and two large grip handles for smooth control. The bevel angle is adjustable from 90° to 75°, and the backstop is adjustable from 90° to 45°.
The multi-position control levers and extra-large clamping handwheel ensure accurate and repeatable results.
Additional assembly required for left tilting saws. For use with 10"table saws.
Like all Grizzly jigs, the T30491 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The T30491 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual provides full instructions on how to assemble and maintain your tenoning jig.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the jig are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.
- Table saw miter slot: Standard 3/8" X 3/4"
- Distance from miter slot center to blade: Min. 3-3/4", Max. 6-3/4"
