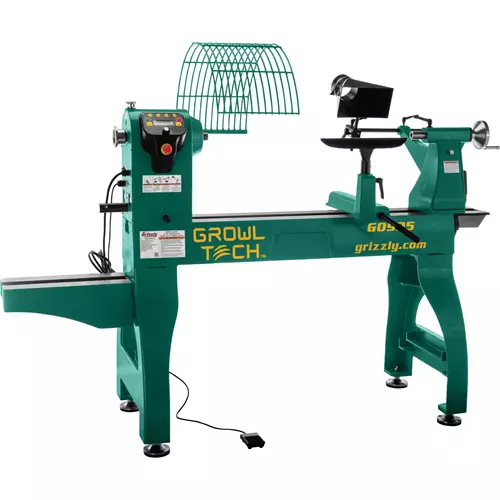

G0995 24-1/2" Growl-Tech™ Heavy-Duty Wood Lathe

Upgrade your woodturning with advanced digital controls and a switch reluctance motor for smooth and consistent power.

Revolutionize your woodturning with increased capacity, smooth and consistent power, and advanced digital controls with 8 speed presets.

This lathe gives you total control and versatility for any woodturning project. It includes a pivoting headstock for outboard turning, an 18" bed extension with five mounting locations, a swing-away bed that allows you to quickly move the tailstock out of the way during bowl turning, a 15° spindle indexing for stationary detail work like fluting, and more.

A built-in adjustable dust hood with 4" port and assisted braking help to ensure a clean and safe workspace, and a built-in tool storage compartment helps keep your turning tools organized and ready for use.

If you're looking for the ultimate wood lathe with the power, capacity, and reliability that comes with the Grizzly name, this is it.

FEATURES and BENEFITS:

• Computerized 3 HP Digital Variable Reluctance Motor (DVR): Eliminates the need for belts and pulleys, saving up to 8-% power compared to traditional lathes.
• Push-Button Spindle Reversing Switch: For quickly and easily reversing the spindle.
• 8-Programmable Speeds and Programmable Assisted Braking: Precise control over spindle speed and quick, efficient stopping.
• 180° Pivoting Headstock with stops at 0°, 45°, 90°, 135°, and 180°: Versatile for a wide range of turning projects, including bowl turning and spindle turning.
• 15° Spindle Indexing: Essential for detail work done with the spindle at rest, like fluting, segmenting, and applying decorative inlays.
• 18" Cast-Iron Bed Extension: Expand your lathe's capacity for larger projects with five mounting locations.
• Self-Ejecting Tailstock: Simplifies tool removal.
• Comparator Kit: Replicate stair spindles, table legs, and more with this built-in workpiece template holder.
• Storage Compartment: A built-in rack within the tailstock for tooling, right at your fingertips.
• Dust Hood: Adjustable dust hood with 4" port mounted to the bed connects to your dust collection system to keep your turning area clean.
• Adjustable Chuck Guard: Protects you from debris.
• Safety Foot Switch: Must be engaged for continuous operation.

Experience unmatched precision, power, and versatility. The user-friendly design incorporates intuitive controls and features for a seamless woodworking experience. Upgrade your woodturning today.

SPECIFICATIONS:

• Required power supply: 220V, single-phase, min. 20A circuit
• Motor: 3 HP, 220V, 3-phase,15A
• Swing over bed: 24-1/2"
• Swing over tool rest base: 19-3/4"
• Outboard swing over bed extension: 41-1/2"
• Outboard swing over tool rest base: 37"
• Distance between centers: 30-1/2, 48-1/2"
• Spindle speed: Variable, 100–5000 RPM
• Spindle threads: 1-1/4" x 8 TPI RH
• Spindle bore: 11/16"
• Spindle taper: MT#2
• Tailstock taper: MT#2
• Tailstock quill travel: 4-1/2"
• Headstock rotation: 0°, 45°, 90°, 135°, and 180°
• Tool rest width: 14"
• Tool rest post: 4-3/4" L x 1" dia.
• Footprint: 51-1/2" x 24"
• Overall dimensions: 81" W x 41" D x 59" H
• Approximate shipping weight: 739 lbs.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0995 comes with a 1-year warranty.

Made in an ISO 9001 factory
