Item: W1867 | Model: W1867

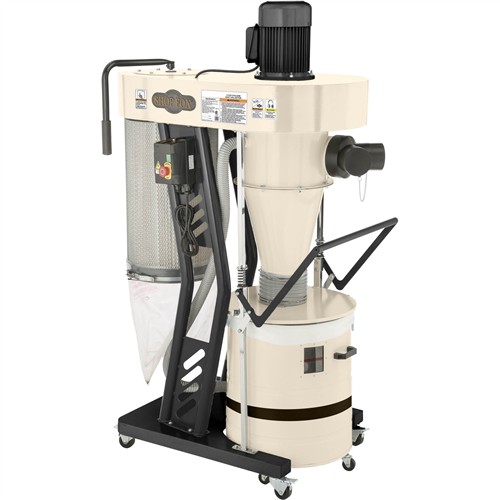

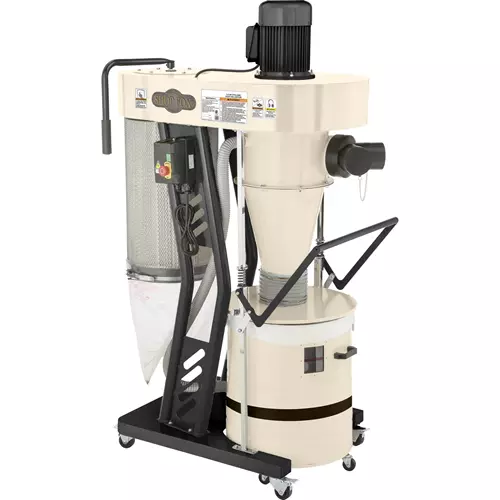

Image for Shop Fox W1867 - 1-1/2 HP Portable Cyclone Dust Collector

2 Product Videos

No Reviews
$1,575.00
  • Motor: 1.5 HP
  • Airflow capacity: 868 CFM @ 1.8 in. SP
  • Impeller size: 12-3/4 in.
  • Filtration: 99.9% at 1 Micron
  • Filter size: 14-1/2 in. x 24 in. canister
  • Intake port(s): 2 x 4 in.
  • Sound rating: 78 dB
  • Overall height: 70 in.
  • Shipping weight: 278 lbs.

Hover to View 1-1/2 HP Models

Shipping

Accessories

Shop All Accessories
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A
Specification Sheet Manual Parts List Buy Parts
Overview

Shop Fox W1867 1-1/2 HP Portable Cyclone Dust Collector

The W1867 Cyclone Dust Collector provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector.

Featuring an impressive 868 CFM and up to 9.7" of static pressure, creating a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined 20-gallon steel drum.

The remaining fine dust travels past the 12-3/4" aluminum impeller, is caught by a canister filter and then deposited in a separate plastic collection bag.

The spun-bond polyester filter catches 99.9% of particles to 1 micron in size and is pleated to provide maximum surface area for efficient air flow.

A turn of the filter cleaning handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your CFM as high as possible.

The collection drum features a quick-release handle that makes it easy to roll it out for sawdust disposal.

Like all Shop Fox dust collectors, the W1867 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1867 manual was written by the U.S.-based Shop Fox Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collector.

The Shop Fox Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the collector may be available online and shipped from the Shop Fox parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110V, single-phase, 15A
  • Intake hole size: 6"
  • Impeller: 12-3/4" aluminum
  • Airflow capacity: 868 CFM @ 1.8" SP
  • Max static pressure: 9.7"
  • Filtration: 1 micron
  • Filter surface area: 28.1 sq. ft.
  • Collection size: 20-gallon drum
  • Sound rating: 78dB
  • Overall dimensions: 27-1/2" W x 44" L x 70" H
  • Approximate shipping weight: 278 lbs.

FEATURES:

  • Two-year warranty!!
  • Wireless remote-control operation
  • Compact, portable design
  • Quick-release handle on collection drum
  • Swivel casters on base and collection drum
