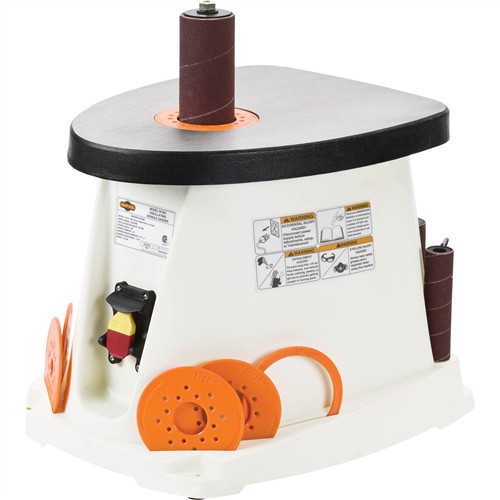

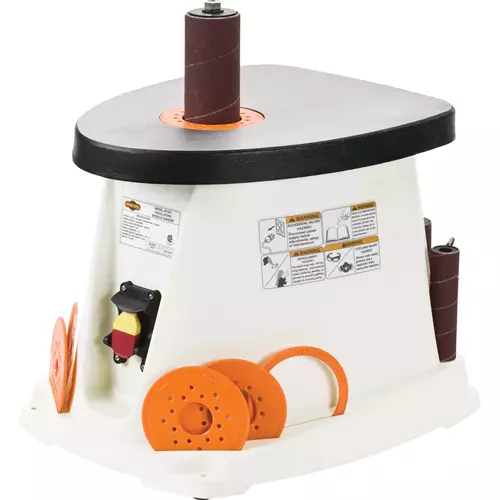

Shop Fox W1831 1/2 HP Benchtop Oscillating Spindle Sander

Achieve smooth finished edges on curved workpieces.

This Shop Fox W1831 1/2 HP Benchtop Oscillating Spindle Sander is ideal for smoothing edges after being cut with a bandsaw or scroll saw.

Fifty-eight oscillations per minute ensures even sanding of the wood and even wear on the drum.

The machine has neatly organized built-in storage for all of the spindles, sleeves, table inserts, and spindle washers.

Six sanding sleeve diameters let you sand a full range of inside curves down to 1/2-inch diameter. A corresponding insert pairs with each sanding sleeve.

The W1831 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

CSA certified

SPECIFICATIONS:

• Motor: 1/2 HP, 120V, single-phase, 3.5A
• Spindle speed: 2000 RPM
• Spindle oscillations: 58 SPM
• Stroke length: 5/8"
• Sanding drum length: 4-1/2"
• Table size: 15" L x 11-1/2" W
• Dust port size: 1-1/2"
• Overall dimensions: 15-9/16" W x 14-1/8" D x 17" H
• Approximate shipping weight: 34 lbs.

FEATURES:

• Space-saving benchtop style
• Locking power switch with removable key
• Sanding drums store neatly in the base for easy, organized access

INCLUDES:

• 5 rubber sanding drums: 3/4", 1", 1-1/2", 2", 3"
• 6 sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2", 3"
• 6 table inserts: 1/2", 3/4", 1", 1-1/2", 2", 3"
• 3 spindle washers: 5/8", 7/8", 1-3/4"

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the W1686 comes with a 2-year warranty.
