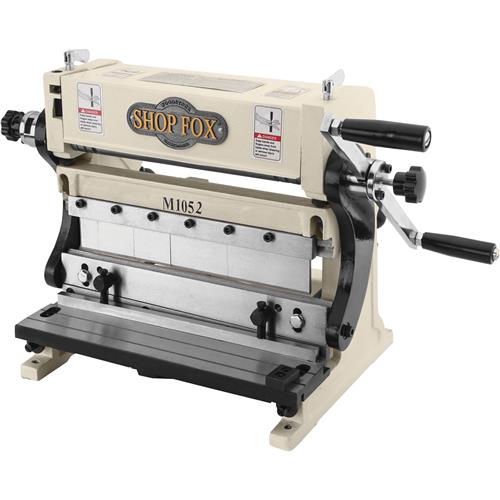

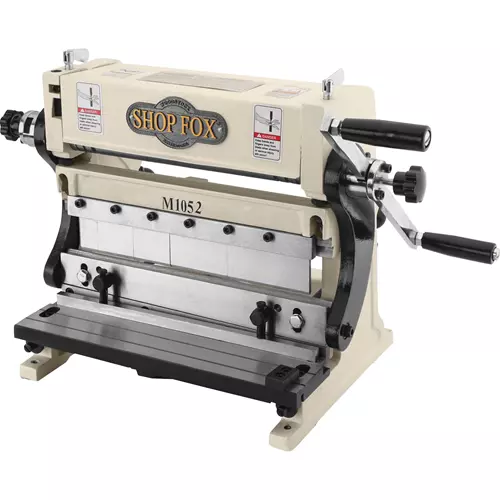

Shop Fox M1052 - 12" 3-in-1 Sheet Metal Machine
M1052 12" 3-in-1 Sheet Metal Machine
There is no need to spend extra money and tie up shop space with three single-use machines.
The M1052 12" 3-in-1 Sheet Metal Machine has 12" wide capacity and three sheet metal functions in one unit.
You'll love the convenience and accuracy of these do it all machines!
Like all Shop Fox machines, the M1052 comes with a two-year warranty which covers parts and assures the unit is free from factory defects.
The M1052 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to use and maintain your 3-in-1 sheet metal machine.
The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.
- Maximum capacity in mild steel: 22-gauge
- Pan/box brake minimum reverse bend: 3/4"
- Pan/box brake maximum side height @ 90°: 2"
- Slip roll minimum cylinder diameter: 1-1/2"
- Slip roll wire sizes: 1/8", 11/64", 13/64"
- Pan/box maximum side height: 2"
- Overall dimensions: 24" W x 23" D x 15-3/8" H
- Approximate shipping weight: 116 lbs.
- Two-year warranty!!
- Shear table front guide
- Shear and brake adjustable rear stop
- Hardened steel brake fingers
- Precision-ground hardened steel shear blade
