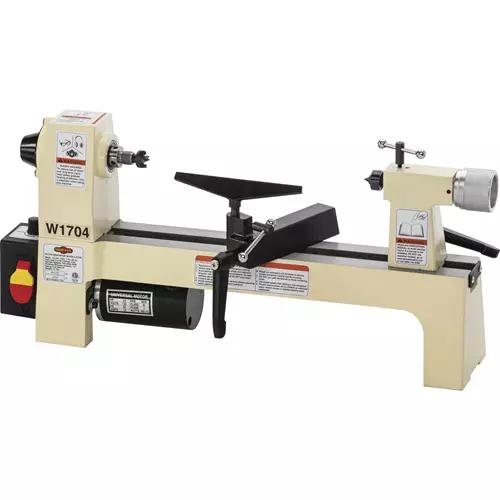

Shop Fox W1704 8" x 13" Benchtop Wood Lathe

Ideal for pen turning and small projects.

The Shop Fox W1704 Wood Lathe is the benchtop model that pen turners and miniature hobbyists demand.

The variable-speed spindle easily adjusts between 750-3200 RPM with the twist of a dial.

The W1704 features cast-iron construction for stability, a 5-3/4" faceplate, 8" of swing over the bed, and 13" of distance between centers.

This lathe includes interchangeable 4-1/4" and 7" tool rests. Either tool rest will lock into a sturdy, quick-adjust base to maximize support where cutting occurs and minimizes leverage when in use.

Extra-large knurled spindle and tailstock knobs help provide an ergonomic grip for manually rotating your workpiece and changing out centers.

Like all Shop Fox lathes, the W1704 comes with a 2-year warranty covering parts and assuring the unit is free from factory defects.

The W1704 manual was written by our U.S.-based Documentation Department is packed with useful information.

The Shop Fox Technical Support team is U.S.-based. Parts for the lathe may be available online and shipped from the Shop Fox parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

ETL certified

SPECIFICATIONS:

• Motor: 1/3 HP, 120V, single-phase, 4A
• Swing over bed: 8"
• Swing over tool rest base (banjo): 5"
• Distance between centers: 13"
• Spindle speed: Variable, 750-3200 RPM
• Spindle threads: 3/4" x 16 TPI RH
• Spindle taper: MT#1
• Tailstock taper: MT#1
• Footprint: 5-1/2" x 23-1/2"
• Overall dimensions: 29" W x 10-1/2" D x 13" H
• Approximate shipping weight: 52 lbs.

FEATURES:

• Two-year warranty!!
• Variable-speed spindle
• Precision-ground cast-iron bed
• Safety paddle switch with removable key
• Knurled headstock and tailstock knobs for added grip

INCLUDES:

• Safety paddle switch
• MT#1 spur center
• MT#1 live center
• 4-1/4" and 7" tool rests
• 5-3/4" faceplate
• 3/4" x 16 TPI RH spindle
