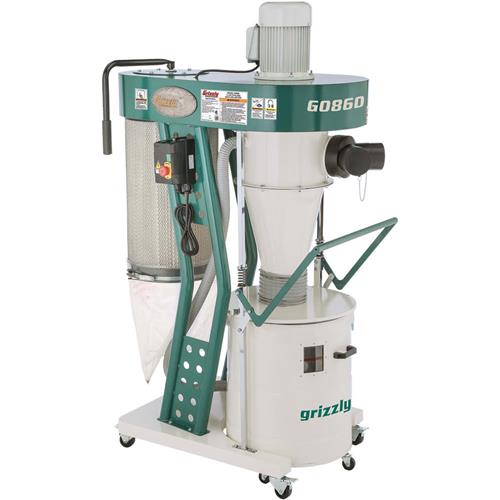

If your shop is tight for space and you need the flexibility of a portable dust collector, look no further than the G0860 1.5 HP Cyclone. This compact unit features an impressive 868 CFM and up to 9.7" of static pressure - perfect for handling up to two large machines at once. The 20 gallon collection drum with quick release handle catches large particulate for quick and clean bag changes, and the pleated 1-micron filter captures remaining dust as part of this super efficient two stage separation system. All this, and it features a wireless remote! The G0860 1.5 HP Cyclone Dust Collector is part of our new lineup of affordable, high efficiency cyclones, and is sure to be a perfection addition to your shop!

Made in an ISO 9001 Factory


  • Motor: 1.5 HP, 110V, single phase, 3450 RPM, 15A
  • Intake hole size: 6"
  • Impeller: 12.75" welded steel
  • Filtration rating: 1 micron
  • Collection drum capacity: 20 gallons
  • Max airflow capacity: 868 CFM @ 1.8" SP
  • Max static pressure: 9.7"
  • Filter surface area: 28.1 sq. ft.
  • Switch: Remote-controlled magnetic with thermal overload protection
  • Sound rating: 78dB
  • Overall dimensions: 27-1/2" W x 44" L x 70" H
  • Approximate shipping weight: 278 lbs.

    G0860 FEATURES
  • Includes collection drum with quick-release handle for easy disposal
  • Two stage operation for ultimate dust collection
  • Powder coated paint
  • Swivel casters
  • Lift handle and roll drum for easy sawdust disposal
  • Pleated filter with paddle brushes and crank handle for max air flow efficiency
  • Unique vacuum equalizer built into collection drum for use with disposable plastic bags
  • Includes wireless remote control so you can turn it on from anywhere in your shop

    Made in an ISO 9001 factory

  • Reviews

    35 Customer Reviews(4.8 out of 5 stars): Sign in to write a review

    Anonymous Reviewer
    05/19/2020 7:56:13 PM

    No feedback given

    James N
    Awesome dust collector 05/06/2020 10:46:23 AM

    First expensive dust collector Ive had (was using a $100 one for a few years). Super straight forward with assembly, threaded holes for hardware made it a breeze. You will need a second hand erecting this monster (I read through reviews and assembled laying on the side due to motor assembly weight). This thing has some power! With that being said, it does draw quite a bit on startup as in might pop a breaker. I put it on its own dedicated 30amp circuit and it works great. I really like how the main collection bin isnt overly massive so when you do have to empty out you are only moving 20-30 lbs of debris vs 50+. Filter cleaning handle and collection bag is great as well. Would highly recommend for any smaller type some or hobbyist wood worker.

    Anonymous Reviewer
    Great product with one technical issue. 04/30/2020 2:49:07 PM

    The fella does the job! I recently built a new shop and needed an upgrade to my dust collection. It functions great but I've encountered one issue that's a little bothersome. The specs say the minimum amp size is 20A. My electrician installed a 20A breaker on a dedicated circuit with wire sized one step larger than the power cord. It starts up the first try with everything in place. If I shut it down and then want to use again, the breaker trips and I have to reset it to use again. Then the tripping/resetting starts all over. I contacted Technical Support and was told I needed to install a 30A breaker. The reason being that 20A breakers in this country are not the same as 20A breakers in the country of manufacture. I'm not an electrician and mostly understood our 20A breakers cannot handle this 15A machine. So now I have to pay for a new 30A breaker and circuit because wire size for the existing 20A circuit is too small to allow for exchanging the breakers in the panel. So...

    Terry C
    Amazing Suction! 04/30/2020 12:48:37 PM

    Wow! This cyclone dust collector is so powerful! I don't understand other reviews about tripping breakers, I installed a 20amp breaker have not had a single problem with it. I did switch out the power cord so I don't have to use an extension cor since I am moving it from tool to tool until I get plumbing in place? Before I had this I was using a different brand that was rated at a much higher HP and CFM rating and it isn't even in the same league, simply doesn't compare. I have used this on my 12" Ultimate Grizzly jointer and it picks up every bit of chips and dust with a 20' + run of flex pipe. This is an amazing tool and worth every penny. The noise is not that loud, I always use hearing protection in my shop, but it is much quieter than the 2HP dust collector I was using before this. The cleaning process is very easy and the rollout canister works great, no problems with the seal. The plastic bags that come with it are thick and durable, I just empty them and re-use them. Keep an eye on the fill line on the canister, when it fills up it then backs up to the fine dust bag. I will say that I do not see any dust in the air after using my 3hp cabinet saw, 2hp band saw, planer or jointer, this cyclone dust collector is a beast! If you are considering it don't hesitate, it's perfect for a small - medium sized shop.

    Anonymous Reviewer
    03/17/2020 6:18:27 AM

    No feedback given

    Anonymous Reviewer
    02/23/2020 12:38:46 PM

    No feedback given

    Anonymous Reviewer
    Perfect for a small shop! 02/17/2020 10:48:54 PM

    Because of the weight of the impeller, it took me quite some time to put this together. I feel the same way about the
    instructions that others have talked about. There is a 20 minute YouTube video that was extremely helpful.
    As for the system, I couldn't have asked for anything more. Easily takes on two machines at once - actually surprised
    about the power.
    Tech service is the best - they won't stop helping until you are satisfied. Joe never let me down.

    Anonymous Reviewer
    Does a great job. 02/13/2020 3:04:42 PM

    The dust collector comes in three boxes and takes some time to assemble. My suggestions for improvements. 1. My unit sits in the corner of my shop and the controls are on the wrong side. I moved the switch to the right side with a few extra mounting holes, and an extension cord. If Grizzly made the plug cord to the controls just 6" longer the extension wouldn't have been necessary. 2. The spindle to the shaker handle is too short. If you seat it completely down the handle doesn't fit. The solution is to lift it slightly and tighten. 3. The start-up power required kept popping my 20 amp breaker The solution is a 30 amp breaker. Once the start-up is over (3 seconds) the power required drops significantly and it runs great.

    Anonymous Reviewer
    Nice machine 11/30/2019 5:56:03 PM

    It is all that I thought it would be - works great with single machine hooked up.

    Had to upgrade a 20AMP breaker to 30 AMP - not much of a problem.

    Was supposed to get a $50 gift certificate in a "few" weeks; hasn't happened.

    I own a JET DC-1100 canister/vortex machine. Your machine leaves the JET unit way behind in the "dust".

    Anonymous Reviewer
    Nice product 11/29/2019 7:08:51 PM

    Bought this dust collector a couple of months ago for my home shop and am very pleased so far. I havent had any of the breaker-tripping problems reported in some earlier reviews, even on a 20 amp circuit. When a friend and I assembled this, instead of lifting the impeller cage up on top of the legs as the instructions specify, we bolted the impeller cage to the legs while it was laying on its back, then lifted it upright. This seemed to be much safer and easier than doing it according to the instructions.

    Kirk B
    Very impressed with the performance and quality. 11/18/2019 4:03:35 PM

    Had been looking to upgrade my dust collection system and this more than exceeded my expectations. Works great with all of my equipment and runs much quieter than my old system.

    Anonymous Reviewer
    Really Quiet 11/08/2019 8:17:16 PM

    Really good dust collector only 77- 79 dB.
    No problem with my circuit breaker it is on its own 20amp circuit and runs perfect. Read the book for testing steps must be connected to your hose or ductwork or you may have problems.
    I did receive a bad gasket on my drum but grizzly mailed one out same day.

    Anonymous Reviewer
    Best purchase to keep the dust cleaned up 10/24/2019 9:34:15 PM

    I am relieved to be able to work on a really clean shop. Now that I have this collector connected to my saws. It really works.

    Anonymous Reviewer
    Good product even though some of thenuts & bolts were missing. 10/12/2019 11:01:20 AM

    No feedback given

    Robert Y
    Great Machine, well worth the investment 10/04/2019 2:35:11 AM

    Great dust collector, so glad that I finally was able to purchase it. I researched it and waited too buy it and so glad that I finally did. I read the reviews on some people complaining about having to re-tap all the screw holes, due to excessive paint. But I had no problems putting it together. But you do need at least 2 extra people to help you lift the motor and motor housing. good investment and so far does the job that I bought it for with no problem.

    Anonymous Reviewer
    Great system 09/01/2019 4:34:11 PM

    I have had the DC for about a month now and I love it!! I generally have it attached to 1 tool at a time and it works great. I have a table saw, 8" jointer, 16/32 sander, and a 20" planer and it easily handles all of them. I love the remote too. If there is a downfall its that its a bit loud. I highly recommend!!!!

    Anonymous Reviewer
    08/22/2019 5:17:49 PM

    This has been useful on my CNC machine. It is load, but that's ok because the CNC and it's associated vacuum motors are very noisy. A CNC environment is just load.

    Anonymous Reviewer
    08/13/2019 1:08:20 AM

    Bought this dust collector after reading all the reviews on 110 volts & 1.5 HP motor, instructions for Assembly ok could be better, took about 3 hours, ok Performance ,runs very smooth plenty of suction for two machines if I had one complaint it would be noise, overall dust in the shop is down to a minimum.

    William M
    Love This Dust Collector! 07/12/2019 9:44:11 PM

    I was in the market for an effective dust collector for my small garage space shop area. It also had to be affordable to meet my needs as an occasional woodworker. After deciding on this model and ordering it, the machine was shipped and delivered in less than a week. It took several hours to assemble and the help of one of my buddies to lift the motor in place (highly recommended). I also spent time tapping out all of the threads to receive the 5/16"x18 bolts as recommended by other reviewers due to the heavy paint deposits (again highly recommended). I am very pleased with the performance of the machine. It required a dedicated circuit and an upgrade to a 30A fuse to prevent the breaker from tripping on start up. I run this with a 6" hose from the machine, reduced to a short section of 4" at the tool with a quick disconnect fitting. I move the dust collector hose from machine to machine as needed, due to my small shop space, the need to have tools be mobile, and my specific set up. Excellent dust collector for my needs and is even more so given the price and overall value. Highly recommended.

    Anonymous Reviewer
    07/09/2019 5:00:38 PM

    No feedback given

    Anonymous Reviewer
    The G0860 Dust Collector works great for my needs 06/22/2019 1:11:40 AM

    I keep all my woodworking tools crammed into half of a two car garage. When I want to use them I have to move the car out of the other half and pull out whatever tools I need to use that day. When finished I have to clean up and move the car back in by the end of the day. This dust collector has drastically reduced the amount of sawdust cleanup I have to do. It fits nicely in the back corner of the garage. I also have a Grizzly 17" bandsaw, 8" jointer and track saw in my tool collection.

    Anonymous Reviewer
    06/14/2019 8:46:48 PM

    Ordered this machine on 4-9-19 was on back order was shipped on 5-15-19 came ups frieght with tail gate service came un damaged . The problem I had was I wired it up just like book said and it would trip the breaker . I called tech support they advised to go to 30 amp breaker and #10-2 wire works fine now tech said they will address this issue. Other than that runs great.

    Val Z
    06/01/2019 12:29:40 PM

    Perfect for the size of my workshop which is a small 2 car garage with low ceiling.

    Rus S
    Works well 05/30/2019 3:28:19 PM

    Works well after solving the electrical problem of not running on a 20amp breaker. Went to 30 amp breaker and all works well.

    Anonymous Reviewer
    05/30/2019 11:13:30 AM

    No feedback given

    Randal W
    05/18/2019 12:40:38 PM

    Went together real well not as quiet as I thought it should have been but still real satisfied

    Russel O
    Don't own this but wish I did 05/01/2019 12:27:21 PM

    I can tell from the images how well this is designed. I spent several weeks converting my single stage G8027 into the equivalent of this G0860 system so I have first hand knowledge of a lot of little details that makes me wish this unit had been available - AND for the price - when I was originally converting mine. I think I spent about $550 in total on all my parts (including the G8027 itself) - but more importantly, it was a pain in the a$$ to convert it. LOTS of work and there are still little details that frustrate me about my converted unit...details that I can see are well thought out in this design.

    1. My unit is not mobile anymore - its stationary mounted to the wall.
    2. My unit I have to lift the dust can UP to the mounting plate - which is a pain to do. This unit has a lever bar that lowers the mounting plate onto the can - much better design.
    3. This makes better use of the space below the unit - its quite compact considering how many parts make up the unit.
    4. This motor has 65% more CFM than mine - a HUGE difference.
    5. Sturdy easy access design
    6. Built in dual feed with all parts designed to fit together - I had to mickey mouse a few of my components to get them to all fit together properly.

    I can tell right away, knowing what I know now about converting mine, that I would have spent the $250 more for this unit in a heart beat and eliminated ALL of the above issues and hassles. But this unit, and nothing like it, was available when I was researching my dust collection system. I might just upgrade in a year or two.

    Steven W
    I Recommend this dc 03/30/2019 12:51:06 AM

    Ive had this for over a month now. Was worth the wait (about 2 months). The instruction could be better, but Ive seen worse. I ran a 6 main line with 4 branches to six tools using SDR-35 pipe and fittings, including internal grounding.They are easy to figure out. The issue I had was running it on a 20 amp circuit would trip the breaker every time. If you reset it and tried again, it would start right up. My electrician suggested replacing the breaker as the least expensive option to try first. We did and it really made no difference. It would start without tripping about half the time. So he put a test on it at start up and it would draw 20-22 amps on start up, hence the breaker tripping. His remedy was to run 10 gauge wire to a single dedicated 20 amp outlet and use a 30 amp breaker. It has worked perfectly since he did that. One other note, anyone who buys this dust collector and wants to use it with an ivac system, dont bother. They will not work together. I bought one to try (cost $239) which was only one blast gate figuring I would add to the system as time went by. Wrong! And they wont take it back.

    Anonymous Reviewer
    Another great Grizzly product! 03/17/2019 11:29:41 PM

    I bought this and had to wait a few months for it to arrive, but it was worth the wait. I did a ton of research and almost bought a Laguna that was a little cheaper but was not a cyclone. Im glad I waited. You will need another person to help with assembly, but it was fairly easy to assemble. It works as advertised and does a great job of keeping the dust off the floor. I have it paired with a dust right expandable hose and quick connect kit so I can use with all my woodworking machines. I have used with my table saw and my planer so far and Im very happy. I will say that although it is advertised as a 15A, it tripped every 15A I plugged in to, so I had to plug into a 20A and that works just fine. For the price, Im not sure you will find a better cyclone dust collector. Im just a hobbyist, and I own other brands, but this is my third Grizzly product (table saw and benchtop jointer) and they were all worth the money IMO. If youre on the fence, just buy it...youll be glad you did.

    William Z
    02/02/2019 11:42:39 AM

    No feedback given

    Anonymous Reviewer
    Well worth the wait! 02/01/2019 3:45:40 PM

    I've had this DC installed and running for 1 months now and wonder why I never did it before! It's currently being used for my CNC, Miter station and Table Saw with some more plumbing in the plans. This DC has more than enough capability for any job including when I temporarily hooked it up to my planer and jointer (huge mess makers.) hat was so surprising is they bag under the filter hardly has anything in it! I would absolutely buy this again and recommend it to others!

    Anonymous Reviewer
    01/31/2019 2:00:40 AM

    Went together fairly easily. You will need a helper to lift the top motor assembly and duct into place. Minirndesign issues that dont impact performance but should have been rectified include the placement of the equaliztiinbhise on the dust collection tub. It placement cause an interference with the back leg support and pinches the tube when the tub is locked into position. They had so much free space to locate the port I cant understand why they positioned it in the one place that would cause interference and thus make clamping the tub in place difficult. Performance of the unit otherwise has been excellent.

    Tom W
    01/30/2019 4:49:54 PM

    Instructions were not very clear to assemble the unit, after several phone calls to technical support I was able to get it together, even had to drill new holes to get the cannister to latch properly. I haven't connected it to my dust collector tubing as I am waiting to get some electrical outlets installed in my garage. I have turned on the unit and it sounds strong and I like the use of the included remote control. In summary, it has great features but needs some improvement in the installation instructions!

    Anonymous Reviewer
    Great Overall Product and Value 01/30/2019 2:24:37 PM

    The assembly is a bit of a "figure it out", though it comes with detailed instructions, few of the bolts are the correct size. It's also very easy to strip out some of the metal holes, so be careful when assembling. I have at least one bolt I had to cut off with my Dremel and tap out.

    The overall product is an amazing value for the price. I've been using it for about 3 weeks now as a part time commercial, mostly home shop.

    I love the remote start feature, I have the remote dongle clipped to my shop apron.

    The overall amp draw is inaccurate on the website listing, and this machine requires its own 20 amp circuit. To be honest, it really should just be a 240v and if I were do do it over again, I might spend the more money and get the slightly bigger machine that comes pre-wired for 220. My electrician friend and I hooked up his meter to my shops electrical panel while turning on this system, and in the first 5 seconds it spikes from about 100 amps, down to 75 amps, and eventually down to the steady draw of 13-15 amps. So in the long run, it's going to be putting a lot of excess strain on the electrical system.

    What the first reviewer said about the exhaust hose is also correct, it's in the wrong spot and creates an unnecessary sharp turn in the system.

    I've only run a single machine on this at once, but so far it handles my table saw, jointer, and planer amazingly, and there is hardly any dust at all in the plastic bag.

    Anonymous Reviewer
    Some minor issues 01/11/2019 3:02:37 PM

    Although I rated it a five there are a few things I noticed;
    1) The manual is adequate but could use some work. If you are mechanically inclined you can figure it out.
    2) The manual inventory and what is explained to use for the 1/2" and 3/4" shoulder bolts do not match. Probably a simple typo. It is not a big thing since either bolt works in most of the situations. There is plenty of threads left outside the nut or tapped hole when done for either bolt. At least how I used them.
    3) I messed up 2 bolts/threads when trying to install them. I did not have a tap to fix the holes. But an easy fix was to drive the bolt up from the other side. The issue is how the paint was applied. It filled the holes so much that it was impossible to get the bolt started. Even with a lot of pressure applied. Eventually it either cross threaded or mashed the threads down. An easy thing for them to do at the factory is to use a tap after the paint process was completed. Quick solution that adds a huge amount of help to the end user when they do the assembly. Either that they could add a tap to the kit.
    4) The other thing I notice was that some part alignment was at the edge of tolerances for proper alignment. Fortunately all bolts and holes aligned. But some things were just a little close on fit and made the final product look a little off here and there. This was for the area of the catch bin/lid latches and hose attaching to the cone.
    5) The exhaust hose location on the catch bin is positioned to close to the right side upright for my liking. If they moved it slightly more to the left the hose would not have such a hard turn to make.
