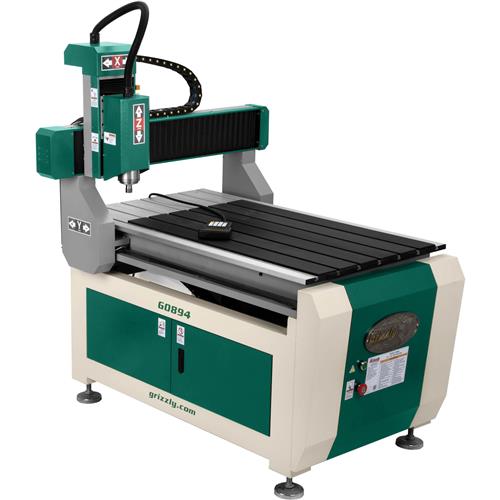

Item #: G0894
Model # G0894
Overview

Take your shop to the next level by adding CNC capabilities! The G0894 boasts a large 23 x 35 cutting area with a 3 HP, 24,000 RPM spindle motor to do the work. This machine features stepper motor driven ball screws on all axes that can approach cutting speeds of 400 inches per minute. This ensures accurate, repeatable results and saves you precious time in the shop. The integrated controller allows you to store commonly used programs on the hard drive as well as load programs from a flash drive or even connect directly to you PC. The spindle utilizes ER20 collets allowing for a wide range of tooling options. The one-shot oiler for the precision ground bearing carriages and the water cooled spindle prove that this machine is ready for production.

Specifications:

  • Motor: 3 HP, 220V, single-phase
  • Amps: 8A at 220V
  • Collet Type: ER20
  • Collet Size: .015-0.5"
  • Cutting Area: 23" x 35"
  • Cutting Accuracy: +/-0.005"
  • Spindle Speed: 0-24,000 RPM
  • X & Y Travel Speeds: 33 FPM
  • Z Travel Speeds: 16 FPM
  • Weight- 772 lbs.
