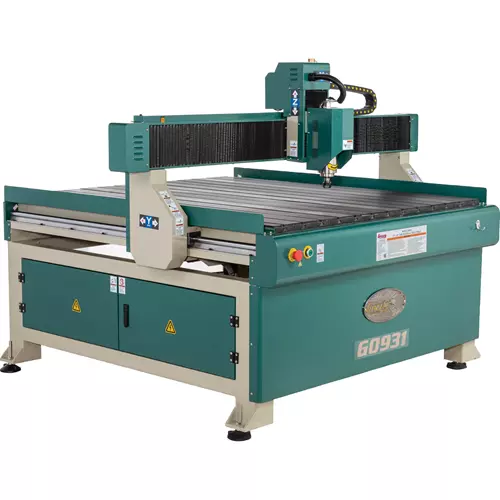

G0931 47" x 47" CNC Router With T-Slot Table

A CNC router with production-level cutting capability for your small shop.

The G0931 CNC Router With T-Slot Table is ready to cut a wide range of parts from basic shapes up to highly detailed 3D geometry using wood, plastics, and other non-metallic materials.

It comes equipped with a rigid steel frame and a 47-1/4" x 47-1/4" x 6-1/4" cutting area.

Extruded aluminum T-slots provide virtually unlimited clamping configuration, and a water-cooled 24,000 rpm spindle allows for heavy-duty machining.

The welded-steel gantry and ball-screw driven linear guides on all 3 axes contribute to this router’s top-notch precision.

The included ER20 collets ensure the use of a broad selection of tooling options, while the tool touch-off pad allows you to quickly set the Z-height.

This machine is compatible with many common CAD/CAM platforms including, but not limited to:

• Vcarve and Vcarve Pro
• Aspire
• Cut2D
• Fusion360
• Solidworks
• Type3
• Artcam
• UG
• Pro/E
• MasterCAM
• Cimatron
• Ucancam

Store your frequently used programs on the handheld controller or run them directly from a thumb drive. A PCI interface also allows you to connect directly to your PC.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Required power source: 220V, single-phase, min. 20A circuit
• Spindle motor: 3HP, 220V
• X-, Y-, Z-axis motors: hybrid stepper, 4.0A
• Collet type: ER20
• Collet sizes: 1/8", 1/2", 4mm, 6mm
• Cutting area: 47-1/4" X- x 47-1/4" Y- x 7-7/8" Z-
• Cutting accuracy: +/-0.005"
• Spindle speed: 0 – 24,000 RPM
• X- & Y- travel speeds: 59 FPM
• Z- travel speeds: 33 FPM
• Overall dimensions: 70" W x 62-1/2" D x 53- 1/2" H
• Approximate shipping weight: 948

FEATURES:

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• RichAuto DSP A11 handheld controller with USB port and keypad
• Aluminum table with T-slots and PVC padding
• Tool touch-off pad for quickly setting Z-axis height
• 80W submersible water pump for spindle cooling
• Water-cooled spindle with included water pump

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0931 comes with a 1-year warranty.
