Overview

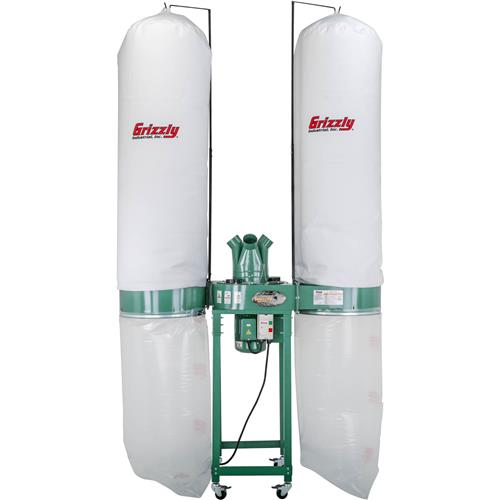

From its gutsy 5 HP motor to its huge 15" impeller, this powerhouse will tackle any dust collection task you throw at it—day in and day out. With four connection ports, this Industrial Dust Collector can easily handle four simultaneously running woodworking machines in a large-sized shop.

Made in an ISO 9001 Factory

Specifications:

  • Motor: 5 HP, 220V, single-phase
  • Air suction capacity: 3961 CFM
  • Static pressure: 14.6"
  • Intake port with manifold: 4" x 4 Holes
  • Intake port without manifold: 10"
  • Impeller size: 15" balanced steel, radial fin
  • Collection bag capacity: 24 cubic feet
  • Bottom bag material: plastic
  • Upper bag filtration: 2.5 micron
  • Machine collection capacity: maximum 4 machines
  • Detachable base
  • Overall dimensions: 74" W x 29" D x 134" H
  • Approximate shipping weight: 326 lbs.

    Optional Bag Replacement: T21317 Upper Bag; G6512 Lower Bag

  • Reviews

    3 Customer Reviews(5 out of 5 stars): Sign in to write a review

    Greg L
    08/23/2019 12:52:31 PM

    No feedback given

    Anonymous Reviewer
    05/17/2019 5:09:53 PM

    This machine is amazing. Especially for the price. It was fairly easy to assembly (if you have a second person to help lift it) and the suction is beyond what I expected. I have it hooked to a planer, jointer, miter saw, table saw and a sweep shoot. Of course I use blast gates, but even with them all open there's no issues.
    On delivery there was one part damaged, but I just took a picture, sent it to grizzly and had another one in about 4 days. They were super friendly and helpful.

    Lonnie M
    02/27/2019 12:12:03 PM

    I bought this to hook to my grizzly equipment working very nicely with 4 machines hooked to it.
