- Motor: 4 HP
- Airflow capacity: 3552 CFM
- Impeller size: 14-1/2 in.
- Filtration: 2.5 Micron
- Filter size: 23-5/8 in. x 47-1/4 in. bag
- Intake port(s): 4 x 4 in.
- Sound rating: 90 dB
- Overall height: 106-1/8 in.
- Shipping weight: 306 lbs.
Product Group
Industrial Bag Filter 1 HP 1 HP Wall Mount 1-1/2 HP 1-1/2 HP Wall Mount 2 HP 3 HP 4 HP and Over Bag Filter Canister FilterHover to View Details
Product Resources
Accessories
Recommended For You

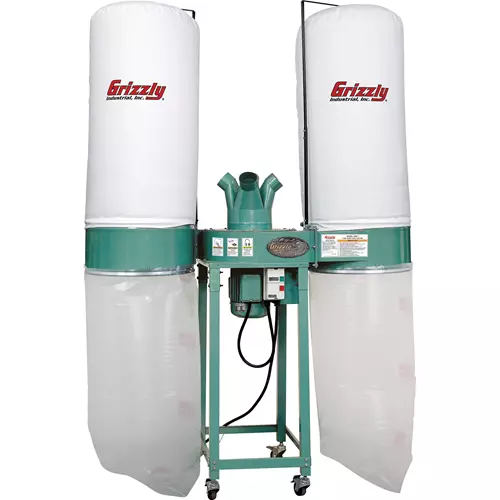

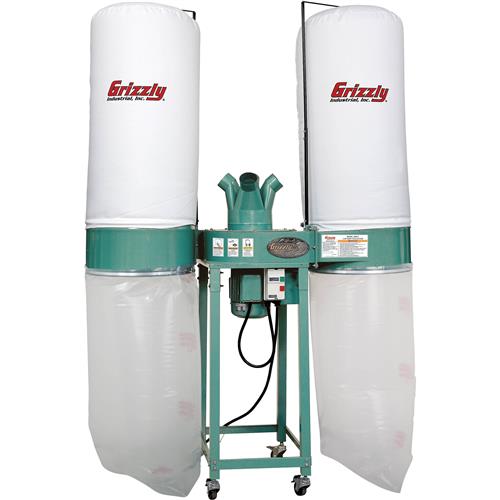

G0671 4 HP Dust Collector
The perfect multiple machine dust collector for shops without tall ceilings.
The G0671 4 HP Dust Collector can connect to four simultaneously running woodworking machines in a large-sized shop.
Static pressure is produced by the 14-1/2" steel impeller to move the wood chips into the collector.
The G0671 has an air suction capacity of 3552 CFM and has a max static pressure of 13.5" at 0 CFM.
2.5-micron upper filter top bags capture the fine dust particles; plastic bags catch the rest.
The steel base has been fitted with casters to allow you to move this unit easily.
Optional bag replacement: T23373 2.5-Micron Replacement Bag; G6512 6mm Plastic Lower Bag.
Like all Grizzly dust collectors, the G0671 comes with a one-year warranty which covers parts and assures the unit is free from factory defects.
The G0671 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector.
The Grizzly Customer Service and Technical Support Teams are U.S. based.
Parts and accessories for the dust collector may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Motor: 4 HP, 220V, single-phase, 26A
- Air suction capacity: 3552 CFM
- Maximum static pressure: 13.5"
- Impeller: 14-1/2" balanced steel, radial fin
- Filtration rating: 2.5-micron
- Intake port with manifold: 4 x 4"
- Intake port without manifold: 10"
- Simultaneous machine collection capacity: 4
- Collection bag capacity: 24 cubic feet
- Bottom bag material: plastic
- Bottom bag size: 23-5/8" x 54"
- Height with bag inflated: 101-1/8"
- Approximate shipping weight: 306 lbs.
FEATURES:
- 2.5-Micron upper bag filtration on top, plastic bag on bottom
- 14-1/2" Balanced steel, radial fin impeller
- Heavy-duty steel stand with 3" casters and brakes
- Sturdy collection bags with 24 cu. ft. total capacity
- Four port intake manifold for even distribution to collection bags
