Item# W1685 Model# W1685

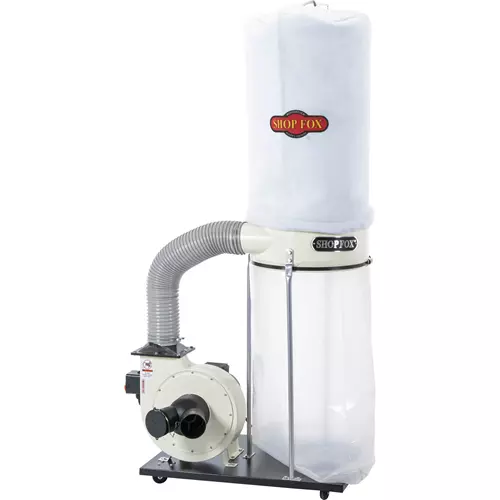

Shop Fox W1685 - 1-1/2 HP Dust Collector

1-1/2 HP Dust Collector-img-0
1-1/2 HP Dust Collector-img-1
1-1/2 HP Dust Collector-img-2
1-1/2 HP Dust Collector-img-3
1-1/2 HP Dust Collector-img-4
1-1/2 HP Dust Collector-img-5
1-1/2 HP Dust Collector-img-6
$624.99
+$69.00 Freight
+$0.00  Oversize
  • Motor: 1.5 HP
  • Airflow capacity: 1280 CFM
  • Impeller size: 12 in.
  • Filtration: 2.5 Micron
  • Filter size: 19 in. x 33 in. bag
  • Intake port(s): 2 x 4 in.
  • Sound rating: < 85 dB
  • Overall height: 78 in.
  • Shipping weight: 94 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

W1685 Shop Fox 1-1/2 HP Dust Collector

A powerful dust collector from Shop Fox!

The W1685 is a powerful, yet portable dust collector with large collection capacity for a 1-1/2 HP model.

This dust collector has air suction capacity of 1280 CFM and has a max static pressure of 10.1 inches. Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector.

It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines.

The upper 2.5-micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

The W1685 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector.

Like all Shop Fox dust collectors, the W1685 comes with a two-year warranty which covers parts and assures the unit is free from factory defects.

The Woodstock Customer Service and Technical Support Teams are U.S. based.

Parts and accessories for the dust collector may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110V, single phase, 16A
  • Air suction capacity: 1280 CFM
  • Static pressure: 10.1"
  • Intake hole size: 6"
  • Bag sizes (diameter x length): 19" x 33"
  • Bag filtration: 2.5-Micron
  • Maximum capacity: 5.4 cubic feet
  • Impeller: 12" balanced steel, radial fin
  • Overall dimensions: 31-1/2" W x 21-1/4" L x 78" H
  • Approximate shipping weight: 194 lbs.

FEATURES:

  • Two-year warranty!!
  • Powder coated finish
  • Steel base with casters
  • 6" inlet has a removable "Y" fitting with two 4" openings

Replacement bags for the W1685 include the G1034 Upper Fabric Filter Bag and G1034 Lower Plastic Dust Collection Bags.
