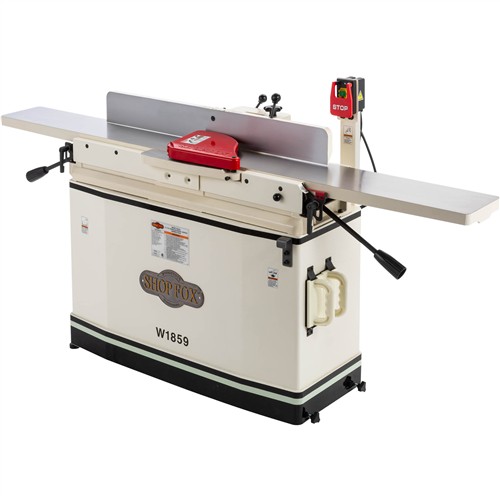

Shop Fox W1859 - 8" x 76" Parallelogram Jointer with Mobile Base
This 8" Parallelogram Jointer features extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted power switch is conveniently located for easy on and easy off. This version features a straight knife cutterhead.
Made in a... View More Details
Overview
This 8" Parallelogram Jointer features extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted power switch is conveniently located for easy on and easy off. This version features a straight knife cutterhead. Motor: 3 HP, 230V, single-phase
Total table size: 9" x 76"
Fence size: 4-5/8" x 38"
Maximum depth of cut: 1/8"
Rabbeting capacity: 1/2"
Cutterhead speed: 5500 RPM
Cutterhead diameter: 3-1/16”
Cuts per minute: 22,000
Cutterhead knives: 4
Lever-adjusted table height with depth gauge
Center-mounted fence with rack and pinion adjustment
Built-in mobile base
Precision-ground cast-iron tables
Extra-long 40" infeed table
Powder-coated finish
4" dust port with built-in dust chute
Parallelogram table design
Power transfer: Poly V-belt
Switch: magnetic push-button switch with large off paddle for safety
Fence system: positive stops at +/- 45 degrees and 90 degrees
Approximate shipping weight: 470 lbs
Made in an ISO 9001 Factory
CSA certified meeting CSA C22.2 #71.2-10 and UL 987 8th Edition standards!
