Item# G0797 Model# G0797

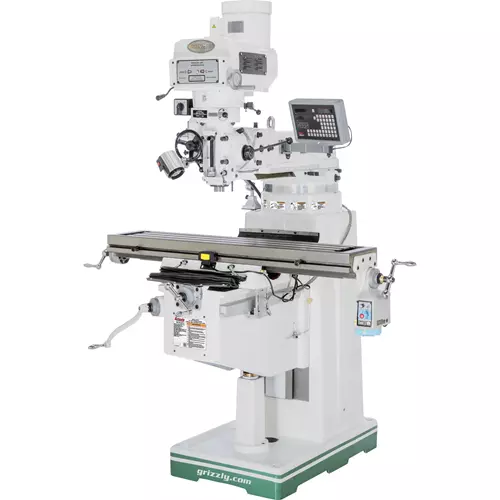

Grizzly G0797 - 10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO

10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-0
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-1
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-2
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-3
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-4
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-5
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-6
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-7
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-8
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-9
10" x 50" 3 HP Variable-Speed Vertical Mill with Power Feed and DRO-img-10
$10,495.00
+$695.00 Freight
+$0.00  Oversize
  • Motor: 3 HP
  • Table size: 50 in. x 10 in.
  • Longitudinal travel: 30 in.
  • Cross travel: 14 in.
  • Spindle taper: R-8
  • Number of speeds: Variable
  • Max spindle to table: 19-1/4 in.
  • Max spindle to column: 27-1/2 in.
  • Shipping weight: 3021 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

G0797 10" x 50" Vertical Mill with Power Feed and DRO

An industrial-grade machine with amazing features at a low price point.

The G0797 10" x 50" Vertical Mill with power feed and DRO is a full-featured mill built for those that have the use of three-phase power.

The headstock itself can rotate 90° left/right or tilt 45° forward/back so it can be positioned for nearly any setup needed. The ram rotates 360° around the turret and travels 18-1/2" forward or backward.

The G0797 milling machines feature 3-axis table movement with built-in longitudinal power feed. With the 10" x 50" table, you can set up a rotary table or another fixture on one side without having to remove your vise on the other.

Select spindle speeds between the 60–500 RPM low range and the 500–4200 RPM high range. Dial in your speed with the variable-speed handwheel and view it on the high-low range speed indicators.

Like all Grizzly vertical milling machines, the G0797 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0797 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the mill may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Required power supply: 220V/440V, 3-phase, min. 15A circuit
  • Motor: 3HP, 220V/440V* (prewired for 220V), three-phase, 6.4A/3.2A
  • Spindle taper: R-8
  • Spindle speed: Variable, 60–4200 RPM
  • Spindle travel: 5"
  • Max. distance spindle to table: 19-1/4"
  • Table travel (longitudinal): 30"
  • Table travel (across): 14"
  • Table travel (vertical): 15"
  • Table size: 10" x 50" x 4-1/8"
  • T-slots: 3 @ 2-1/2" centers, 5/8" wide
  • Head ram travel: 18-1/2" F/B
  • Head tilt: 90° L/R, 45° F/B
  • Turret/column swivel: 360°
  • Base footprint: 48" x 33"
  • Overall shipping dimensions: 100" W x 85" D x 88" H
  • Approximate shipping weight: 3021 lbs.

FEATURES:

  • 2-Axis DRO
  • One-shot pump lubrication for table ways
  • Auto spindle stop with micro-adjustable stop
  • Chrome-plated, precision-ground quill
  • X- and Y-axis way covers
  • Forward and reverse spindle rotation
  • Includes service tools and toolbox

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

*This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee of $250. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
