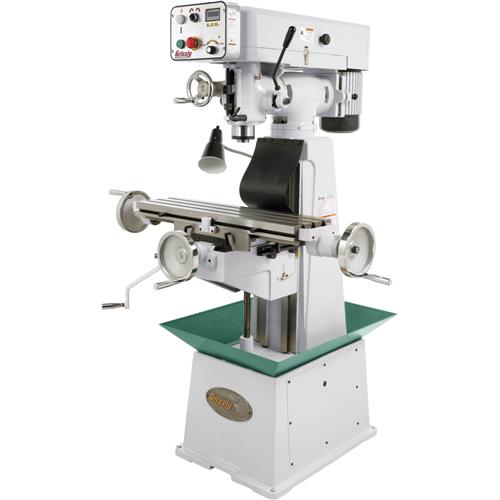

G0678 8" x 30" 1-1/2 HP Variable-Speed Vertical Mill

A vertical mill for any home shop, school, or production shop!

The outstanding features of the Grizzly G0678 8" x 30" 1-1/2 HP Variable-Speed Vertical Mill include fold-up safety handles, one-shot lubrication, tilting head, fine down feed, and last, but certainly not least, infinitely variable spindle speed control with a digital tach!

Now you can have speeds from 200 to 2250 RPM with just the turn of a dial. And it's controlled by a state-of-the-art frequency drive. Hook it up to your 220-volt, single-phase power source and go! The drive inverts and modulates the power to give you smooth speed changes with robust torque. No need for 3-phase with this machine.

The G0678 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.

Parts for the mill may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 220V, 3-phase (with inverter for single-phase power), 3.3A
• Required power source: 220V, single-phase, min. 15A circuit
• Spindle taper: R-8
• Spindle travel: 3-1/2"
• Spindle speed: Variable, 200–2250 RPM
• Table size: 8" x 30"
• Table travel (longitudinal): 18"
• Table travel (cross): 7-1/2"
• Knee travel (vertical): 17-3/4"
• Max. dist. spindle to table: 20"
• Column swivel: 360°
• T-slots: Three 1/2" slots, 2-3/16" on center
• Overall dimensions: 40-1/2" W x 42-3/4" D x 67" H
• Approximate shipping weight: 968 lbs.

FEATURES:

• Electronic variable spindle speed control
• Reversing switch
• Adjustable travel stops on X and Y
• Fold-up safety handles
• One-shot lubrication
• Tilting head
• Turret-style column
• Fine down feed on quill
• Dovetail ways to ensure table movement accuracy
• 1-year limited warranty
