Item# G0779 Model# G0779

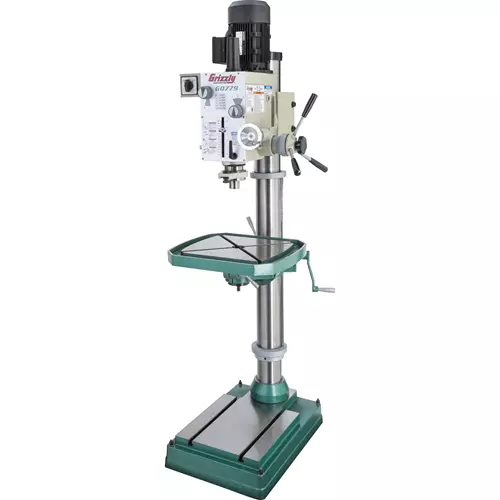

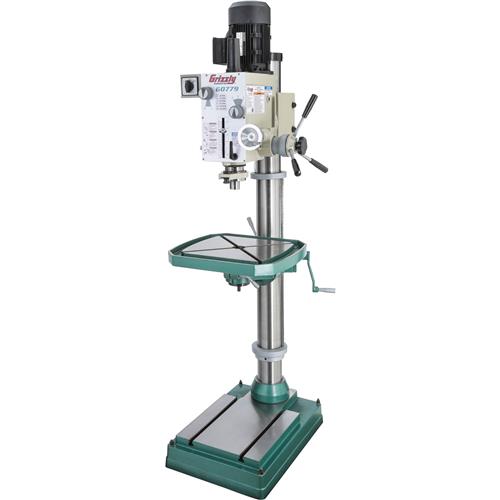

Grizzly G0779 - 23-3/8" Heavy-Duty Floor Model Gearhead Drill Press

$2,145.00
+$175.00  Freight
+$0.00  Oversize

G0779 23-3/8" Heavy-Duty Floor Model Gearhead Drill

In the world of industrial drill presses, this G0779 is a heavy hitter with a 2 HP, 220V, 8.6A motor, a massive 2-15/16" quill, a 4-1/2" column diameter, and a 1-1/2" drilling capacity in cast iron or 1-1/4" in steel. The geared head is equipped with a forward/reverse switch, 6 spindle speeds from 90 - 1970 RPM, convenient quick-change gearbox controls for spindle speed, and an R-8 spindle taper.

With a swing of 23-3/8" and a spindle travel of 5", this machine can handle whatever comes its way. The head tilts 90° left and right, and has a vertical travel of 10-1/2", while the 19-5/8" x 18" table tilts 60° left and right with a vertical travel of 24-3/8".

Both head and table are mounted on independent rack-and-pinions for ultimate positioning versatility. Two 9/16" T-slots are located on both table and base for added usability. The table swivels 360° around its center, and both table and head swivel 360° around the column.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 2 HP, 220V, single-phase, 8.6A
  • Swing: 23-3/8"
  • Spindle taper: R-8
  • Spindle travel: 5"
  • Spindle speeds: 6, from 90 - 1970 RPM
  • Drill chuck: 1 - 13mm, B16
  • Drilling capacity: 1-1/4" mild steel
  • Head tilt: 90° left/right
  • Head swivel: 360°
  • Max. distance from spindle to column: 11-11/16"
  • Max. distance from spindle to table: 26-1/2"
  • Max. distance from spindle to base: 44-3/16"
  • Table dimensions: 18" x 19-5/8"
  • Quill diameter: 2-15/16"
  • Drawbar threads: 7-16"-20
  • Drawbar length: 17-3/4"
  • Table tilt: 60° left/right
  • Table swivel around center: 360°
  • Table swivel around column: 360°
  • Vertical table travel: 24-3/8"
  • T-slots size: 1/2" (2 on table, 2 on base)
  • T-slot centers: 18-1/2"
  • Footprint: 18" x 26"
  • Overall dimensions: 25" W x 33" D x 80" H
  • Approx. shipping weight: 786 lbs.

FEATURES:

  • Solid cast-iron construction
  • R-8 spindle
  • Table equipped with lock levers
  • 1/64" - 1/2" drill chuck
  • 360° table positioning around column
  • Base has precision-ground work surface with two 9/16" T-slots
  • Crank handle operated rack & pinion vertical table and head movement
  • Head tilts 90° right and left
View More Details
Add to Cart
More on the way and expected to arrive on 1/27/2021 Order today to secure your spot in line. Your credit card will not be charged until we ship your product and you may cancel at any time.

Recommended For You

Videos
Overview

G0779 23-3/8" Heavy-Duty Floor Model Gearhead Drill

In the world of industrial drill presses, this G0779 is a heavy hitter with a 2 HP, 220V, 8.6A motor, a massive 2-15/16" quill, a 4-1/2" column diameter, and a 1-1/2" drilling capacity in cast iron or 1-1/4" in steel. The geared head is equipped with a forward/reverse switch, 6 spindle speeds from 90 - 1970 RPM, convenient quick-change gearbox controls for spindle speed, and an R-8 spindle taper.

With a swing of 23-3/8" and a spindle travel of 5", this machine can handle whatever comes its way. The head tilts 90° left and right, and has a vertical travel of 10-1/2", while the 19-5/8" x 18" table tilts 60° left and right with a vertical travel of 24-3/8".

Both head and table are mounted on independent rack-and-pinions for ultimate positioning versatility. Two 9/16" T-slots are located on both table and base for added usability. The table swivels 360° around its center, and both table and head swivel 360° around the column.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 2 HP, 220V, single-phase, 8.6A
  • Swing: 23-3/8"
  • Spindle taper: R-8
  • Spindle travel: 5"
  • Spindle speeds: 6, from 90 - 1970 RPM
  • Drill chuck: 1 - 13mm, B16
  • Drilling capacity: 1-1/4" mild steel
  • Head tilt: 90° left/right
  • Head swivel: 360°
  • Max. distance from spindle to column: 11-11/16"
  • Max. distance from spindle to table: 26-1/2"
  • Max. distance from spindle to base: 44-3/16"
  • Table dimensions: 18" x 19-5/8"
  • Quill diameter: 2-15/16"
  • Drawbar threads: 7-16"-20
  • Drawbar length: 17-3/4"
  • Table tilt: 60° left/right
  • Table swivel around center: 360°
  • Table swivel around column: 360°
  • Vertical table travel: 24-3/8"
  • T-slots size: 1/2" (2 on table, 2 on base)
  • T-slot centers: 18-1/2"
  • Footprint: 18" x 26"
  • Overall dimensions: 25" W x 33" D x 80" H
  • Approx. shipping weight: 786 lbs.

FEATURES:

  • Solid cast-iron construction
  • R-8 spindle
  • Table equipped with lock levers
  • 1/64" - 1/2" drill chuck
  • 360° table positioning around column
  • Base has precision-ground work surface with two 9/16" T-slots
  • Crank handle operated rack & pinion vertical table and head movement
  • Head tilts 90° right and left
