Item: SB1115 | Model: SB1115
Image for SB1115
No Reviews
$5,175.00
  • Motor: 1-1/2 HP
  • Power Requirement: 220V, Single-Phase, 60 Hz
  • Swing: 20-3/4 in.
  • Type: Floor
  • Range of Spindle Speeds: 0–2500 RPM
  • Drilling Capacity: 1-9/16 in.
  • Drill Chuck Type: JT6 Key Chuck
  • Quill Diameter: 2.938 in.
  • Shipping weight: 683 lbs.
Shipping

Accessories

Image for T33849 8" Quick Slide Drill Press Vise Item# T33849 $235.00 Add Image for T28923 Bear Crawl "Papa Bear" Mobile Base Item# T28923 $149.95 $134.95 Add Image for SB1485 Spanner Wrench for South Bend Keyless Chucks - 5/8" Item# SB1485 $7.50 Add Image for SB1216 6" Precision Drill Press Vise Item# SB1216 $180.00 $153.00 Add Image for SB1249 5" Lockdown Milling Vise Item# SB1249 $720.00 Add
Shop All Accessories
California Proposition 65 Warning
Overview Reviews Q & A Specification Sheet Manual Parts List Buy Parts
Overview

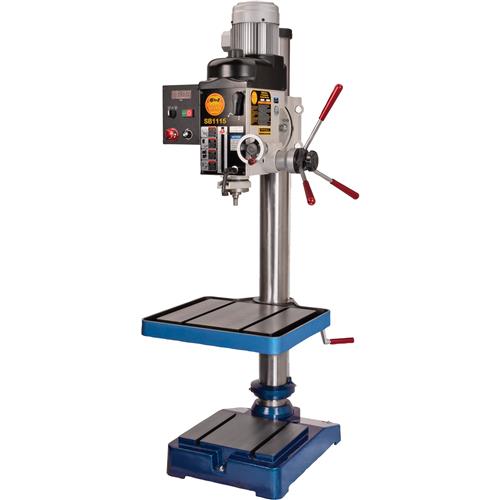

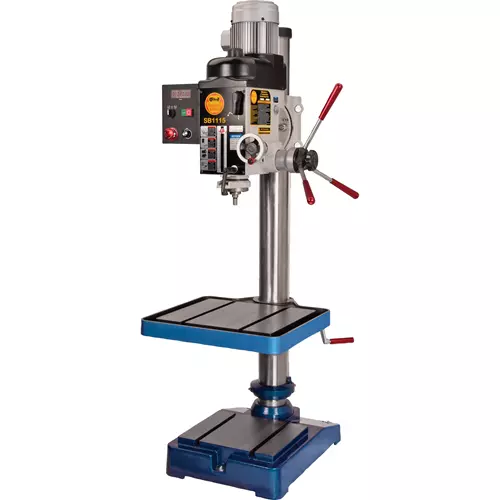

SB1115 21" Variable-Speed Gearhead Drill Press

Unbeatable raw-drive power, performance, and precision.

This powerful, professional-level South Bend gearhead drill press features all the precision and high-end capability you need to put out your best work.

Geared drill presses are designed for drilling larger holes than belt driven machines thanks to the spindle bearings and tighter tolerances.

The spindle is fully reversible, features both coarse and fine downfeed controls, and a depth stop for repeatable production.

The variable speed range between 0 and 2500 RPM is controlled by spindle speed dial and a high/low spindle speed lever. Low RPM speed is vital to drilling metal.

Additional features, such as a digital spindle speed readout on the headstock and a clutch-engaged downfeed function make this gearhead drill press top of its class in design and functionality.

SPECIFICATIONS:

  • Required power source: 220V, single-phase, min. 15A circuit
  • Spindle motor: 1-1/2 HP, 220V
  • Spindle taper: MT#3
  • Spindle speed: Variable, 0–350 RPM (Low) and 0–2500 RPM (High)
  • Spindle travel: 5"
  • Maximum distance spindle to column: 10-7/16"
  • Maximum distance spindle to table: 17-3/8"
  • Cross travel: 7"
  • Drilling capacity: 1-1/2" steel and cast iron
  • Head travel: 13-3/8"
  • Head tilt: 30° Right / 90° Left
  • Table size: 21-3/4" W x 19-1/2" D x 2-1/4" T
  • Table T-slots: 2 @ 1/2"
  • Drill chuck type and size: JT6 key chuck, 1/64"–5/8"
  • Footprint: 26" x 18-1/2"
  • Overall dimensions: 42" W x 35" D x 69" H
  • Approximate shipping weight: 683 lbs.

FEATURES:

  • Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
  • Powered or hand crank-enabled rack-and-pinion table elevation
  • Coarse and fine downfeed controls
  • Red anodized spindle stroke and table elevation handles
  • Cast-iron base with two 1/2" T-slots, 8-7/8" on center
  • 360° table and head positioning around column
  • Digital speed display
  • Front-mounted emergency stop button
  • Forward/reverse spindle switch

South Bend owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the SB1115 comes with a 2-year warranty.

Made in an ISO 9001 factory
