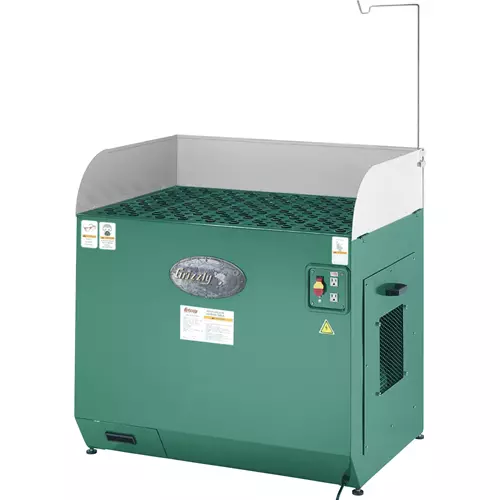

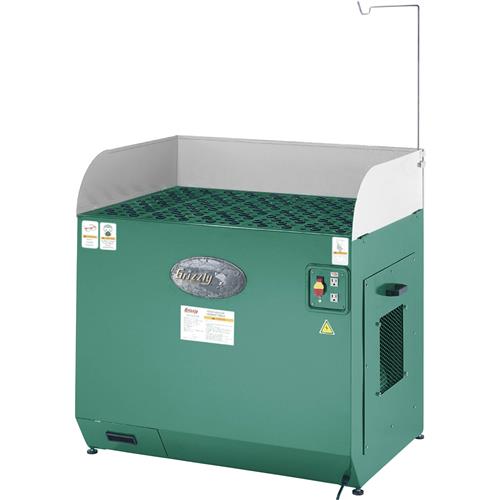

Grizzly H2936 - 28" x 39" Downdraft Table
Like all Grizzly machines, the H2936 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The H2936 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the downdraft table are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 Factory
Certified to CSA & UL standards
- Motor: 1/2 HP, 120V, single-phase, open permanent-split capacitor, 8.5A
- Table surface area: 28" x 37"
- Airflow capacity: 1490 CFM
- Impeller size: 9-1/2" Squirrel cage
- Filter size: 16" x 25" x 2"
- Prefilter size: 16" x 25" x 1"
- Filter rating: 0.3 micron
- Base size: 28" x 39-3/8"
- Overall height: 39-3/8"
- Approximate shipping weight: 252 lbs.
- Grizzly paddle switch with removable key
- Sealed and permanently lubricated bearings
- Non-marring rubber grommets to support work
- Sheet metal table construction
- Aluminum squirrel cage fan
- Easy-access filter bay
- Quiet operation
- Two 120V outlets for plugging in portable sanders
- Power cord hanger
- Durable powder-coated finish
