South Bend SB1090 - 37" x 53" Downdraft Table
SB1090 South Bend 37" x 53" Downdraft Table
An economical and convenient solution for capturing dust.
Even the best handheld sanders with built-in dust collection are not 100% efficient.
A downdraft table captures this excess dust thrown out form the sander and into the air.
Whether using a random orbital sander or sanding by hand, a downdraft table connected to a dust collector is the absolute best way to ensure a dust-free environment.

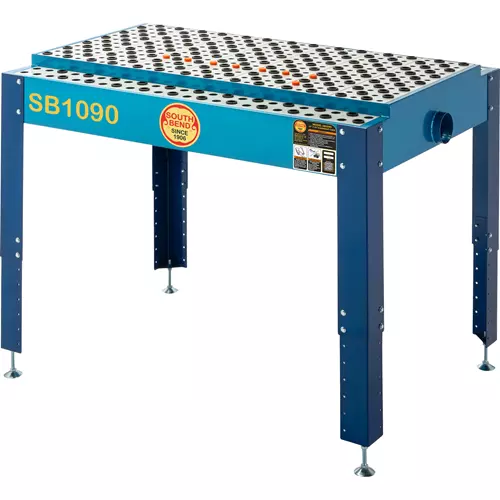

The SB1090 37" x 53" Downdraft Table features heavy-duty steel-frame construction for long-lasting durability and removable table boards for versatility.
The table has over 13-1/2 square feet of surface area with an internal V-bottom that directs air flow down through the table and into your dust collection system through the two 4" dust ports.
Both table shoulders sit 1-1/2" below the center work table for efficient edge-sanding.
The table height can be adjusted from 26" to 43" tall.
1500 CFM is the recommended minimum airflow for this downdraft table.
The SB1090 is covered by a South Bend 2-year warranty covering parts and factory defects.
The instruction sheets were written by our U.S. based Technical Documentation Department and is packed with useful information.
The South Bend Customer Service and Technical Support Teams are U.S. based. Parts are available online and shipped from the South Bend parts warehouse in Springfield, MO.
For the best dust collection possible, outfit your shop with the confidence with a South Bend 37" x 53" Downdraft Table.
Made in an ISO 9001 factory
- Table size: 37" x 53"
- Shoulder table Size: 6" x 53"
- Table Height Range: 26"–43"
- Dust Port Size: 4"
- Load Capacity (Per Suction Board): 40.5 lbs.
- Minimum airflow required: 1500 CFM
- Approximate shipping weight: 140lbs.
- Heavy-duty steel-frame construction
- Removable table boards
- Internal V-bottom for directing air flow
- Ledge allows you to sand edges of boards
- Adjustable table height
- Two 4" dust ports
- US based customer service and technical support
