Item# G0631 Model# G0631

Grizzly G0631 - 28" x 79" Extra Long Downdraft Table

$2,495.00
+$229.00  Freight
+$0.00  Oversize

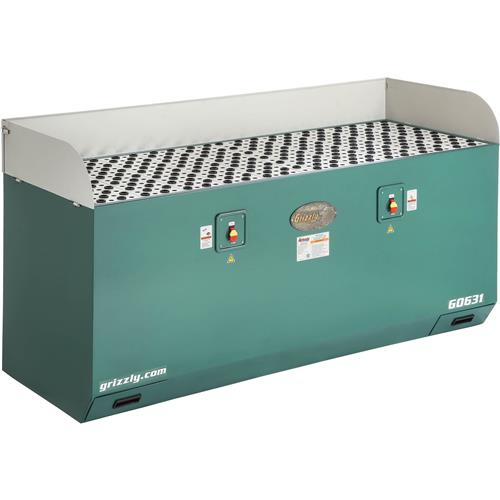

G0631 28" x 79" Extra Long Downdraft Table

Maintaining a clean and dust-free shop environment is a challenge every woodworker faces. Grizzly's Vacuum Sanding Tables are the perfect solution for reducing airborne wood dust and eliminating time-consuming cleanups. Two people can work side by side at this Extra Long Downdraft workstation. Twin 1 HP motors and squirrel cage fans draw a tremendous amount of air into the two stage filter system without creating much noise. Non-marring rubber grommets elevate the work piece for unrestricted airflow. Intended to collect dust from wood and wood products only. This Downdraft Table was made for production sanding!

Specifications:

  • Motors: 1 HP, 110V, single-phase, 12A
  • Table surface area: 25-1/4" x 76-1/4"
  • Table height: 31-1/2"
  • Air suction capacity: 1437 x 2 CFM without filters
  • Sound level: 68 dB
  • Impeller size: 9-3/4" x 6-1/4" squirrel cage
  • Filter size: 16" x 25" x 2" (x2)
  • Prefilter size: 16" x 25" x 1" (x2)
  • Filter rating: 0.3 micron
  • Base size: 27-3/4" x 78-3/4"
  • Overall size: 78-3/4"L x 27-3/4"D x 39-3/4"H
  • Approx. shipping weight: 490 lbs.
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Videos
Overview

G0631 28" x 79" Extra Long Downdraft Table

Maintaining a clean and dust-free shop environment is a challenge every woodworker faces. Grizzly's Vacuum Sanding Tables are the perfect solution for reducing airborne wood dust and eliminating time-consuming cleanups. Two people can work side by side at this Extra Long Downdraft workstation. Twin 1 HP motors and squirrel cage fans draw a tremendous amount of air into the two stage filter system without creating much noise. Non-marring rubber grommets elevate the work piece for unrestricted airflow. Intended to collect dust from wood and wood products only. This Downdraft Table was made for production sanding!

Specifications:

  • Motors: 1 HP, 110V, single-phase, 12A
  • Table surface area: 25-1/4" x 76-1/4"
  • Table height: 31-1/2"
  • Air suction capacity: 1437 x 2 CFM without filters
  • Sound level: 68 dB
  • Impeller size: 9-3/4" x 6-1/4" squirrel cage
  • Filter size: 16" x 25" x 2" (x2)
  • Prefilter size: 16" x 25" x 1" (x2)
  • Filter rating: 0.3 micron
  • Base size: 27-3/4" x 78-3/4"
  • Overall size: 78-3/4"L x 27-3/4"D x 39-3/4"H
  • Approx. shipping weight: 490 lbs.
