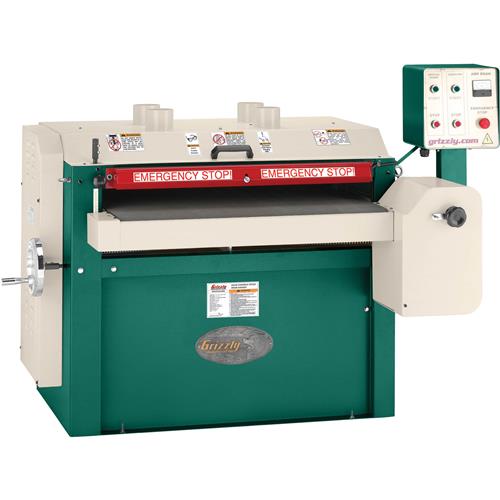

Grizzly G0449 - 37" 10 HP Drum Sander
G0449 37" 10 HP Drum Sander
Your shop’s sanding solution.
Built for production environments, the G0449 37" 10 HP Drum Sander features an industrial-quality conveyor belt and dual 6" sanding drums.
The dual drum setup allows you to place different grits of sandpaper on each drum; cutting your sanding time in half.
Sand stock up to 36-1/2" wide and 4" thick with variable-speed feed control and the economy of spiral-wrapped 6" wide sandpaper rolls.
The sandpaper length needed is 6" wide by 138" long. For a full range of replacement rolls for the G0449, shop here.
With the variable-speed conveyor, you can dial in the perfect finish for each job between 6–18 FPM.
The table height handwheel is used to control cutting depth by raising or lowering the conveyor table.
The amp load meter indicates the combined amperage draw of both motors, allowing you to monitor them and prevent damage to them.
The depth scale indicates the thickness the workpiece will be after it has been sanded.
Also features four 4" dust ports to maximize dust collection, easy access to sanding drums, emergency stop for safety, solid steel construction, independent motor control, and massive power.
Like all Grizzly drum sanders, the G0449 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0449 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the drum sanders may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
- Sanding drum motor: 10 HP, 240V, single-phase, 47A
- Conveyor motor: 1/3 HP
- Maximum board width: 36-1/2"
- Maximum board thickness: 4"
- Minimum board length: 9"
- Minimum board thickness: 1/16"
- Surface speed of drums: 2800 FPM
- Conveyor feed rate: Variable, 6–18 FPM
- Sanding drums: 2, steel/rubber-coated
- Drum diameter: 6"
- Sandpaper size: 6" x 138"
- Overall Dimensions: 68" W x 50-1/2" D x 49" H
- Approx. shipping weight: 1406 lbs.
- Spring-loaded sanding belt tension/sandpaper
- Industrial-duty rubber conveyor belt
- Four 4" dust ports
- Variable-speed conveyor
- 6" steel/rubber-coated sanding drums
- Easy access control panel with load meter
- Hinged hood with gas struts for easy drum access
- State-of-the-art computer-balanced drums
