- Motor: 3/4 HP
- Cutting capacity - rectangular: 4 in.
- Cutting capacity - round: 4-1/2 in.
- Blade speeds: 85 - 195 FPM
- Blade length: 64-1/2 in.
- Head type: FIXED
- Footprint: 35 in. x 17 in.
- Overall height: 55-1/2 in.
- Shipping weight: 102 lbs.
Hover to View Details
Product Resources
Accessories
Recommended For You

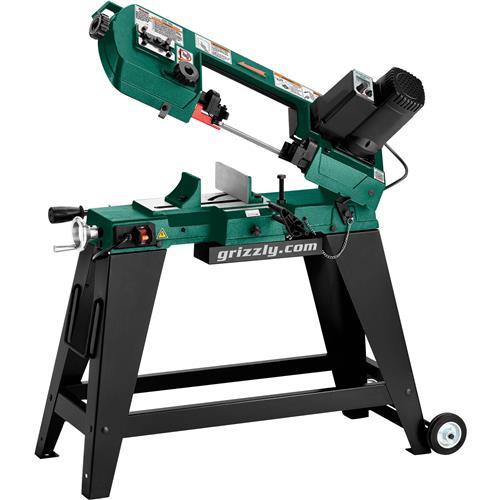

G0926 4" x 5-1/2" Variable-Speed Metal-Cutting Bandsaw
Every shop, no matter the size, can put a portable metal-cutting bandsaw to use.
Tackle your metalworking projects with the G0926 4" x 5-1/2" Variable-Speed Metal-Cutting Bandsaw.
Cut round and rectangular metal workpieces at blade speeds between 85 and 195 FPM (Feet Per Minute).
Speed adjustments are as simple as rotating the blade speed dial until the speed display shows the speed desired.
The vise consists of a movable jaw and fixed jaw and can hold material up to 6" deep and be set to cut angles from 0° to 45°.
The portable platform with built-in wheels and retractable handle make it ideal for storing away or moving to where ever the job requires.
An adjustable work stop assets allows repetitive cutting operations. It will need to be adjusted any time it is removed or repositioned.
As an added safety feature, an automatic blade shutoff tab turns the machine off when the headstock is fully lowered.
Like all Grizzly bandsaws, the G0926 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0926 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your metal-cutting bandsaw.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Motor Size: 3/4 HP, 120V, single-phase, 4.5A
- Maximum capacity circular @ 90 degrees: 4-1/2"
- Maximum capacity rectangular @ 90 degrees: 4" x 5-1/2"
- Maximum capacity circular @ 45 degrees: 3"
- Maximum capacity rectangular @ 45 degrees: 3-1/2" x 3"
- Blade size: 64- 1/2"
- Blade speeds: 85-195 FPM
- Table size: 5" x 11-1/2"
- Vise size: 6-1/4" D x 2-1/2" H
- Footprint: 17" x 35"
- Overall dimensions: 39-1/2" W x 18-1/2" D x 55-1/2" H
- Approximate shipping weight: 102 lbs.
FEATURES:
- Variable-speed dial
- Digital Speed Readout
- Work stop
- Mobile base with handle
- Automatic blade shutoff
- Blade included
