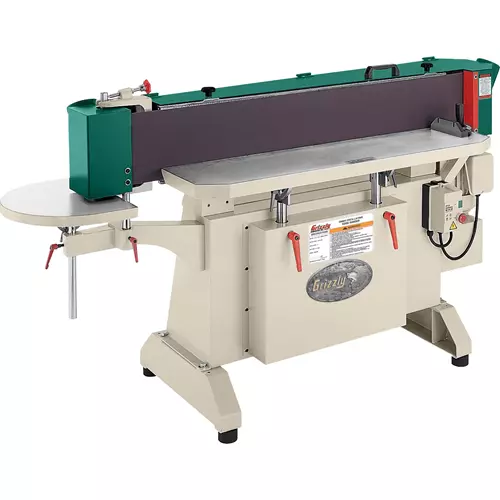

G9984 9" x 138-1/2" Industrial Oscillating Edge Sander
Built for those that demand the biggest and the best tools for their shop.
The G9984 9" x 138-1/2" Industrial Oscillating Edge Sander is the ideal solution for tackling your toughest edging jobs. This heavy-duty machine boasts a massive sanding head and extensive table travel to accommodate large workpieces.
The spacious 11-3/4" x 47-3/4" table tilts 0-45 degrees for sanding at various angles. An additional end table provides further support for long pieces. Both tables offer 8" of travel for exceptional control.
The 1/4" belt oscillation minimizes sanding marks and extends belt life for smoother finishing.
Belt tracking is as easy as turning the belt tracking adjustment knob. For a full range of replacement belts for the G9984, shop here.
With heavy-duty construction, the G9984 features a cast-iron base and a graphite-coated platen for long-lasting durability.
The G9984 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your edge sander.
SPECIFICATIONS:
- Motor: 3 HP, 220V, single-phase, 15A
- Sanding belt size: 9" x 138-1/2"
- Sanding belt speed: 4120 FPM
- Oscillations: 1/4"
- Platen: Graphite-coated, 47-1/2" x 9-1/2"
- Main table size: 11-3/4" x 47-3/4"
- Main table vertical travel: 8"
- Main table tilt: 0–45°
- End table size: 18" x 13"
- End table travel: 8"
- Number of dust ports: 2
- Dust port size: 4"
- Footprint: 42" x 24-1/2"
- Overall dimensions: 82" W x 24" D x 45-1/2" H
- Approximate shipping weight: 873 lbs.
FEATURES:
- Sanding belt oscillates 1/4"
- Quick-release belt lever
- Fully-adjustable belt tracking and tension
- Magnetic switch
- 8" vertical table height adjustment
- Table tilts 45°
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G9984 comes with a 1-year warranty.
Made in an ISO 9001 factory
