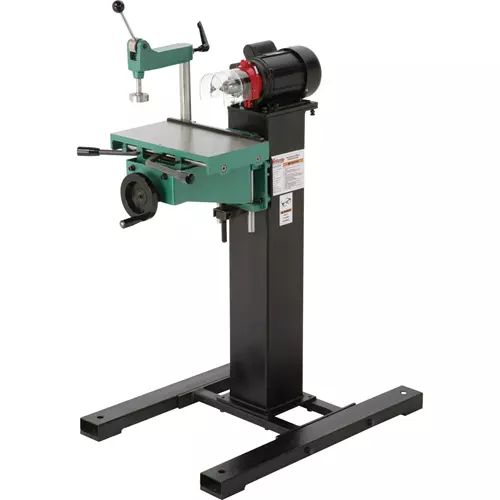

G0540 Single Spindle Horizontal Boring Machine

Finally, the boring machine you have been needing.

How many times have you wished for a simple horizontal boring machine to drill accurate holes into the edges of flat lumber for doweling, hardware alignment, or basic mortising?

Well, your wish has been answered with the G0540 Single Spindle Horizontal Boring Machine.

Simple lever-action controls table movement while a front-mounted handwheel allows you to make precise height adjustments.

Other features include cam-action hold-down clamp, precision-ground slides and adjustable table stops.

The G0540 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your horizontal boring machine.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 3/4 HP, 110V, single-phase, 12A
• Table size: 14-1/4" W x 8-1/4" D
• Table travel, side to side: 6"
• Table travel, front to back: 4-1/8"
• Table travel, vertical: 2-1/8"
• Spindle speed: 3450 RPM
• Drill bit capacity: 5/8"
• Footprint: 22-1/4" x 31-1/2"
• Overall dimensions: 40-1/2" W x 22" D x 43" H
• Approximate shipping weight: 201 lbs.

FEATURES:

• Cam-action hold-down clamp
• Table moves on ground columns
• See-through safety guard
• Adjustable table stops
• Heavy-duty stand
• 1-year limited warranty
