Grizzly   |  Model: G1028Z2
1-1/2 HP Dust Collector
Price: $365.00
Recently Added ×
You May Also Like

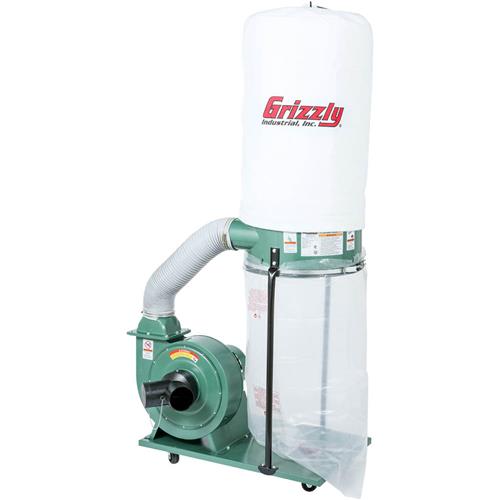

Grizzly G1028Z2 - 1-1/2 HP Dust Collector

Model: G1028Z2
Buy Now!
Freight:  Freight
Tariff Fee:  Tariff Fee
Oversize:  Oversize

This large capacity dust collector runs at 120/240 volts giving you the flexibility to run in any shop situation. A real performer! CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4th standards!
  • Motor: 1-1/2 HP, 120V/240V, single-phase, 3450 RPM, prewired 120V
  • Motor amp draw: 12A at 120V/6A at 240V
  • Air suction capacity: 1300 CFM
  • Static pressure: 9"
  • 6" inlet "Y" with two 4" openings
  • Impeller: 12-3/4" cast aluminum
  • Bag capacity: 5.7 cubic feet
  • Upper bag filtration: 2.5 micron
  • Portable base size: 21-1/2 x 33-1/2"
  • Bag size (dia. x depth): 19-1/2" x 33" (2)
  • Powder coated paint
  • Height with bags inflated: 78"
  • Approximate shipping weight: 118 lbs.

Optional Replacement Bags: G5556 Upper Bag; T20543 Lower Bag

Show More... California Proposition 65 Warning

Accessories and Related Items: View All

You May Also Like:

Customers who purchased this item also purchased:

36 Customer Reviews (4.8 out of 5 stars): Sign in to write a review

Anonymous Reviewer
Works great 1/17/2019

Bought to pair with new 17" Grizzly band saw and all is working well after considerable effort to get dust collection hookup completed to saw..
Connecting the dust hoses in a cold garage is a major pain, and finally I used a small heater to loosen up the connecting ends to get it all together. Why Grizzly does not make plastic connector pieces to go on the Grizzly saw that would connect to 4" screw in connectors on hose is ridiculous. The job could have been so much easier and faster had such connectors to the saw been available.
It all just took far longer than it should have, and required buying additional fittings from Grizzly, and two trips to local Rockler to get it all to fit.
Look forward to using both saw and dust collector now the hookup is completed.
People that design these systems should be required to put one together so see what it is like. I suspect some design changes would be made..

Eduardo C

No feedback given

robert M
outstanding product 12/2/2018

I bought this when out in Mo. just got it put up in shop as with all other Grizzly tools I have bought works great big enough to run table saw ,sander and planer at same time
would recommend this to anyone who is serious about woodwork.

Anonymous Reviewer
Great product 10/7/2018

Im very,very happy with it my son does wood working with me, he has to show everyone how quiet it is. Also the power it has

Craig P
Quiet and Powerful 8/4/2018

Easy to assemble, surprisingly quiet and powerful. Most difficult part was running grounding wire thru the 4" hoses to my tablesaw/router combo and jointer. A blast gate is required if you have more than one piece of equipment. I recommend a cyclone dust separator between DC and equipment. This keeps DC collection bag virtually empty.

john F

simple assembly, system works well, I'd recommend purchasing 4" flex hose when you purchase the product, it will save you a trip to Menard's .

Anonymous Reviewer

No feedback given

Anonymous Reviewer
good product 1/11/2018

Does everything that I want it to do so far, will give it the true test in spring as i have 1000 bd ft to plane,

Gary A
Very well built 1/10/2018

Just installing dust collector for wood lathe. Can tell from assembly that it is very well made.

Anonymous Reviewer
Great product 1/4/2018

So far so good. Very little sawdust left on table saw top.

Ricardo N

very satisfied, easy to put together, more than enough power for my needs and noise level is better than i expected.

Wallace D

I've had mine for over 3 years now and it's amazing. It's connected to my Table saw, Planer, Jointer, Shaper and Bandsaw. It makes clean up easier and keeps the dust level down. The only change I may have made is to upgrade to the 2 HP unit.

Anonymous Reviewer

No feedback given

Anonymous Reviewer

No feedback given

Tila T
Satisfied 7/5/2017

Bought this a couple of weeks ago. The box arrived, from UPS, severely damaged. I am less than happy with UPS (that is a different review), however Brian, the driver was excellent.

Opened the box while the driver was present, it appeared that the damage was confined the the portion of the carton where the flex hose was packed.

Unfortunately it turned out that the base was bent as well as the two ring supports. The supports were bent such that if i had straightened them they would have broken.
I will just say that working with Grizzly was a breeze, they were terrific, will buy from them again.

The 1028Z2 assembled easily, the Grizzly manual far exceeds Jessem, Jet, or HF for clarity. I would change the order of some assembly steps, but that is a nit.

The unit immediately popped my 15 amp breaker, but ran well on a 20 amp breaker. No problem with this.

This is my first experience with a DC, so i have no reference to compare this unit to. However, using a clear 10' flex hose connected the 4" port on my band saw picked up virtually all the dust. Same, using a 2-1/2 10' flex hose can be said of my 2-1/2" equipment, table saw and router table had virtually no dust.

I gave this 4 stars, instead of 5 because i don't know how it compares to other units and i have not owned it long enough to determine reliability.

I do wish i would have purchased this unit years ago.

David B
Sweet 7/1/2017

No feedback given

Anonymous Reviewer

No feedback given

Anonymous Reviewer

No feedback given

Anonymous Reviewer
Great choice for my shop. 6/3/2017

I bought this dust collector when I purchased a G1023RL table saw in December of 2016. I converted the motor to 240V using the diagrams in the instruction manual. I built a collection system serving eight stations for various machines and am very pleased as it has all but eliminated dust in the shop. Great product.

Ian K

No feedback given

Donn D
Great product 6/2/2017

No feedback given

Anonymous Reviewer

No feedback given

Brunson W

No feedback given

Anonymous Reviewer

Like the product. Be aware that there are extra charges regarding the product requiring a lift gate truck that you're not made aware of until you check out. As such the shipping is more than you think. I did not purchase this because I could get it off the semi truck myself but be aware.

Chuck D
This was a great buy 5/14/2017

I bought this product to replace my delta dust collector that died. This has 1/2 HP more at a lower price. The instructions were clear and it took about an hour to have it up and running. It works great and its a lot quieter than my previous one.

Anonymous Reviewer

So far so good. I am concerned about a youtube video which indicates that the machine tends to trip a breaker when operating the collector at temperatures below the mid 50's. Are you aware of this potential problem?

Thomas L

I purchased this machine 1 month ago. It came with all the parts in good condition. It was very easy to assemble and took no time at all. The driver couldn't have been any nicer. I have used it several times and am very pleased with the suction and the ease with which it switches from one piece of equipment to another

David F
better than expected 1/27/2017

Easy to set up, quiet, and does the job. Just starting to collect all my equipment after learning woodworking with my father in law for the past two years. This dust collector is a great addition for the newbies like me.

Anonymous Reviewer
Great tool! 1/27/2017

Great product, assembled quite easily, all the parts were there. It has very good suction[I have 5 machines hooked to it]. A really great buy.

Anonymous Reviewer
Great value and product 1/26/2017

Just put it together and ran it, it is not to load and works great. Can't wait to start my next project. Thanks

Anonymous Reviewer

I do not have it set up as of yet. I will have to review it later.

Anonymous Reviewer
Great dust collector 1/26/2017

Have had for about 4 weeks now and seems to be plenty of collector for the one man shop. using it on only my table saw right now but planning on installing a system as soon as I have the time

Bobby W
Finally getting rid of the chips! 1/26/2017

This is about the best DC you'll find for the money. It has great power, and the fact that it runs on 120 volts is good for a shop like mine that doesn't have enough 220 volt access. I've hooked it up to my spiral cutterhead jointer to face joint wide poplar boards and had almost no chips left at the cutterhead (this with it pulling through a shopmade separator that is somewhat less than efficient). I would buy it again!

Anonymous Reviewer
G1028Z2 Dust Collector Review 1/22/2017

I am really glad I purchased this model, it is just the right size for my shop. Cleanup after a project is now minimal. It has the right footprint, power requirements and most important great suctioning power. It was also in a good price range. Instructions to assemble the unit were clear and easy to understand.

dust collector, top of the line 5/16/2016

I also have a bigger one for table saw and jointer, but this works perfectly with my new drum sander that is in another room. Can't say anything negative, but wish I could find a 6" elbow

Vincent F.
Customer Review 1/1/2015

My G1028Z2 arrived Tuesday as promised. The crate was in good condition and the driver helped me unload the unit. All the parts were included and it assembled just as described in the instructions. The instructions are well written and illustrated. I am impressed by the finish and fit of the parts. Everything looks right for the job.

When I started the dust collector, I was glad I had not ordered the larger (2 hp.) unit. This one (1 1/2 hp.) has plenty of power and will do everything I need in my small shop. I connected my band saw and was very pleasantly surprised to find NO dust inside the saw after about a half-hour of use.

The G1028Z2 dust collector is a quality product that will improve the performance of my shop.

Thank you for your attention.
