Item #: G0705
Model # G0705
Overview

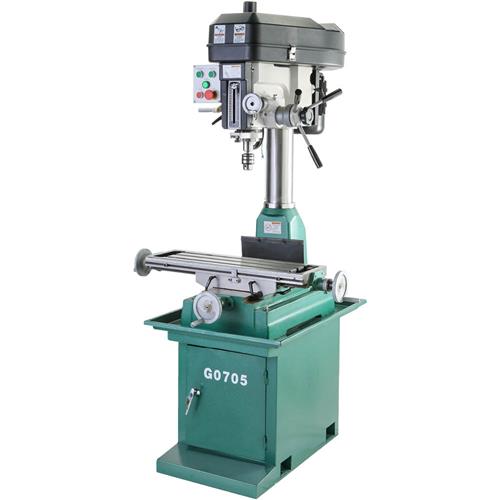

This heavy-duty Mill/Drill has a 2 HP motor and enough table space to make quick work of just about any machining job you can throw at it. Priced so competitively compared to other brands, you can use the savings for the G1076 Clamping Kit or even our G7155 6" machining vise! Of course, with the R-8 spindle, tooling up is a snap and with the cabinet in the stand, you'll have the convenience of storing everything right where you need it most!

Features:

  • Fine down feed is engaged by clutch-type mechanism
  • Easy-to-use depth stop
  • Heavy-duty, 12-speed tapered roller bearing spindle
  • Forward/Reversing switch with emergency stop
  • Stand with chip tray and cabinet
  • Coolant trough

    Specifications:

  • Motor: 2 HP, 110V/220V, single-phase
  • Spindle taper: R-8
  • Spindle travel: 4-11/16"
  • Swing: 15-1/2"
  • Max. distance spindle to table: 17-5/16"
  • Column size: 4-1/2"
  • Collars graduated: 0.001"
  • T-Slots: 3 @ 2-1/2" centers, 5/8" wide
  • Table size: 8-1/4" x 28-3/4"
  • Table travel (longitudinal): 19-11/16"
  • Table travel (cross): 7-1/2"
  • Drilling capacity: 1-3/16" for cast iron, 1" for steel
  • Number of speeds: 12
  • Range of speeds: 140, 219, 263, 317, 413, 475, 819, 1075, 1238, 1450, 1770, 2436 RPM
  • Approximate shipping weight: 750 lbs.

    110V Operation: 110V operation requires installation of a 110V conversion kit. For your own safety, all wiring procedures MUST be completed by an electrician or other qualified service personnel. See Owner’s Manual for details. For all machines, order item #P0705311. The manufacture date is provided on the main product label of the machine.

  • Reviews

    13 Customer Reviews (4.8 out of 5 stars) : Sign in to write a review

    Anonymous Reviewer
    Good so far 03/15/2019 6:25:26 PM

    Being used to Bridgeports I knew I would have to put up with some issues but so far not too bad.

    Anonymous Reviewer
    08/03/2018 6:21:18 AM

    I purchased the G0705 mill about a month ago and it is everything that I expected. It has worked very satisfactorily for a small home shop and, although I would love to have had power feeds, it works well for the money that I spent and I would gladly recommend this machine to a friend. I have used Grizzly products in the past and have had good service and trouble free operations when used within the reasonable guidelines of their design.

    Ray

    David B
    great mill 06/09/2018 6:17:01 PM

    the mill is great the stand sucks its really short, if your 4 feet tall its perfect otherwise you'll have to fabricate to get it higher

    Anonymous Reviewer
    Fantastic mill! 05/31/2018 6:46:49 PM

    Great machine for my purposes, would be nice to have a guide bar or something to keep the head square with the vice but for the most part I can move the quill up and down to reach and clear the work piece.

    Mark H
    Excellent machine! 04/29/2018 11:50:55 AM

    I bought this to replace a drill press, used in a small manufacturing business. This drill/mill both dwarfs that drill press, and exceeds it's abilities 20 times. The G0705 is very heavy duty, easy to use, and capable. I am very excited about the new options that it gives me. It is a great value, and I anticipate many years of quality use.

    Allen M
    As advertised 10/08/2017 11:54:04 PM

    I purchased this almost 2 years ago, and I have been pleased. It was my first mil and my first purchase from Grizzly. If I had it to do again I would by one with a dovetail vertical column instead of the round column. Overall it is a good value; I have purchased additional items from Grizzly because of it.

    Anonymous Reviewer
    09/18/2017 7:36:08 PM

    No feedback given

    James M
    08/04/2017 2:38:10 PM

    No feedback given

    Anonymous Reviewer
    07/17/2017 11:23:00 AM

    No feedback given

    Bill R
    06/08/2017 12:07:38 PM

    great machine, so far, does everything i
    need.

    Anonymous Reviewer
    06/02/2017 12:43:01 PM

    No feedback given

    Joe W
    05/23/2017 12:45:11 PM

    No feedback given

    Anonymous Reviewer
    Great product 05/18/2017 11:49:34 AM

    I bought this about a month ago and I am very happy with its performance thus far.
