Item# M1036 Model# M1036

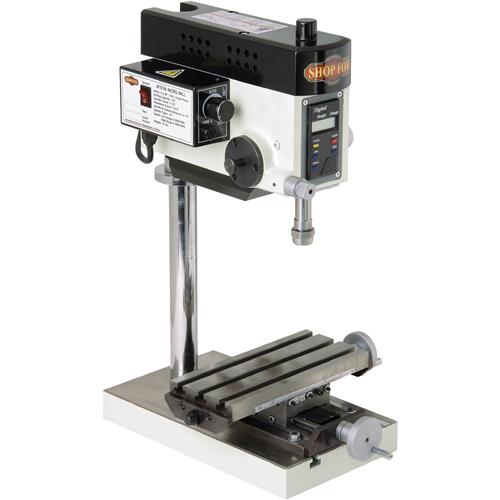

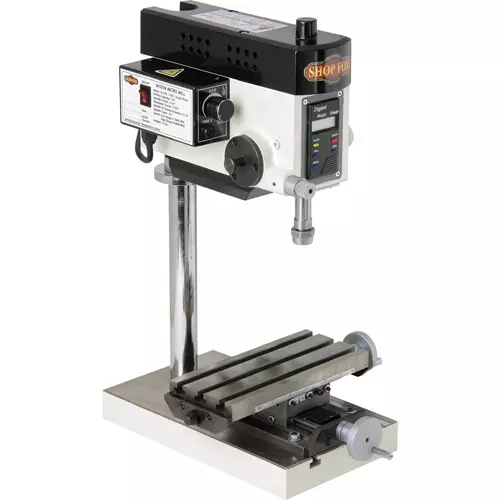

Shop Fox M1036 - 4" x 8" Micro Milling Machine

4" x 8" Micro Milling Machine-img-0
4" x 8" Micro Milling Machine-img-1
$699.99
+$0.00 Freight
+$0.00  Oversize
  • Motor: 200W
  • Table size: 8 in. x 3-1/2 in.
  • Longitudinal travel: 5-1/2 in.
  • Cross travel: 5-1/2 in.
  • Spindle taper: JT#1
  • Number of speeds: Variable
  • Max spindle to table: UNSPECIFIED
  • Max spindle to column: 6-1/2 in.
  • Shipping weight: 44 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

M1036 Shop Fox 4" x 8" Micro Milling Machine

A mill for model makers and others needing intricate parts.

The M1036 4" x 8" Micro Milling Machine from Shop Fox is perfect for machining high-precision small parts.

The digital depth readout provides accurate height measurements, zeroing at any height, and incremental readout adjustments.

The variable-speed dial controls the spindle speed. The high/low speed range is dependent on which pulley the belt is on.

The 3-1/2" x 8" table can be moved in two axes. Each axis is independently controlled by a crank handle. Each handle has graduated dials for precise movement.

The M1036 has a traditional downfeed lever for quill movement. It also has a micro downfeed knob for more accurate control of quill depth.

Like all Shop Fox mills, the M1036 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The M1036 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the mill may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 Factory

SPECIFICATIONS:

  • Motor: 1/4 HP, 110V, single-phase, 2A
  • Drilling capacity: 1/4"
  • Spindle speeds: low range: 0-3600 RPM, high range: 0-5000 RPM
  • Spindle taper: JT-1
  • Spindle travel: 1-1/2"
  • Spindle to column distance: 6-1/2"
  • Column swivel: 360°
  • Headstock travel: 7-3/4"
  • Table travel (longitudinal): 5-1/2"
  • Table travel (cross): 5-1/2"
  • Table size: 3-1/2" x 8"
  • Approximate shipping weight: 30 lbs.

FEATURES:

  • Two-year warranty!!
  • Digital depth readout
  • Compound slide table
  • Variable speed, 0-5000 RPM

Pictured with the optional M1038 Quick Vise and M1037 Collet which are not included.
