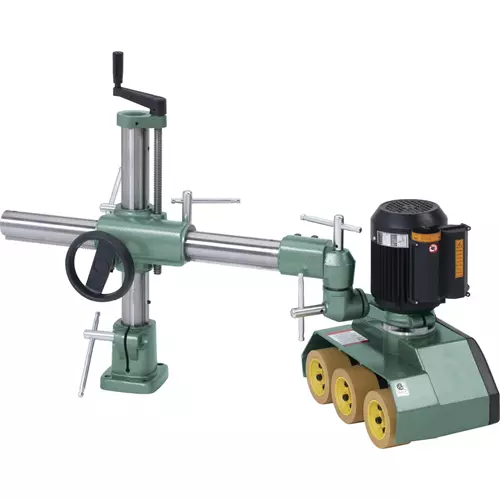

G4181 1 HP 4-Speed 3-Roller Power Feeder, Single-Phase

If you do any kind of production ripping or milling, you know what a big chore it can be feeding by hand, especially with longer and wider stock.

For those who want to increase production, upgrade, or add on another stock feeder, we have a power feeder to match virtually any application and budget.

The G4181 reduces kickback hazards and improves cutting results by feeding in a consistent and stable manner.

The universal joints allow you to adjust the power feeder tracking and height to accommodate many workpiece sizes.

The power feeder has the option to feed a workpiece at 13, 26, 33, and 66 feet per minute.

SPECIFICATIONS:

• Motor: 1 HP, 240V, single-phase, 4.2A/2.5
• Feed speeds: (4) 13, 26, 33, 66 FPM
• Rotation: Forward & reverse
• Maximum height of rollers: 7"
• Minimum workpiece length: 7"
• Horizontal travel: 17"
• Vertical travel: 9"
• Swing: 360°
• Rollers: (3) synthetic rubber, 2-1/4" wide x 4-5/8" dia.
• Roller suspension: 3/4"
• Approximate shipping weight: 141 lbs.

FEATURES:

• Rollers are spring-tensioned
• Heavy-duty gear reduction with hardened gears
• Universal positioning with handle locks
• Rack-and-pinion horizontal movement
• Forward/reverse feed
• Multiple feed speeds
• X-, Y-, Z-axis adjustment

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G4181 comes with a 1-year warranty.

Made in an ISO 9001 factory

CSA certified
