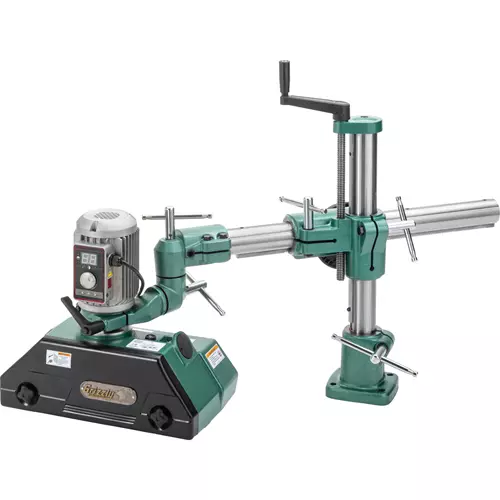

T33924 1 HP Variable-Speed 3-Roller Power Feeder, Single-Phase
Smoothly feed every workpiece with this variable-speed power feeder.
This 3-roller power feeder is equipped with a 1 HP servo motor so you can feed boards with minimal stoppage time.
The servo motor won’t bog down, so you can run stock quickly and efficiently.
This variable-speed power feeder features speeds of 3-35 FPM and 8-90 FPM for versatility depending on your feed speed requirements.
Easily view your speed choice in either imperial or metric with the LED feed rate display; adjust the speed with the convenient dial.
You can send boards through at the push of a button in both forward and reverse as your projects demand.
A rack-and-pinion system provides smooth, methodical motion for horizontal movement, and a crank handle simplifies vertical adjustment.
The power feeder mounts easily to your shaper or table saw and can be removed just as easily.
A variable-speed power feeder that prevents tearout and boosts woodworking shop production.
SPECIFICATIONS:
- Motor: 1 HP, 220V, single-phase, 3.4A
- Feed speeds: Variable, 3-35 FPM and 8-90 FPM
- Vertical travel: 9-13/16"
- Horizontal travel: 17-5/16"
- Rotation: Forward/reverse
- Swing: 360°
- Minimum workpiece length: 7"
- Rollers: (3) 2-3/8" x 4-3/4"
- Roller suspension: 11/16"
- Maximum height of rollers: 8-1/8"
- Overall size: 43-1/2" W x 18-1/2" D x 30" H
- Approximate shipping weight: 130 lbs.
FEATURES:
- Tough and effective servo motor
- LED feed rate display showing both imperial and metric readings
- Variable-speed adjustment dial
- Forward/reverse feed
- Push-button ON/OFF switch and feed direction
- Rack-and-pinion horizontal movement
- Crank handle vertical adjustment
- Easy mounting and removal
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T33924 comes with a 1-year warranty.
Made in an ISO 9001 factory
