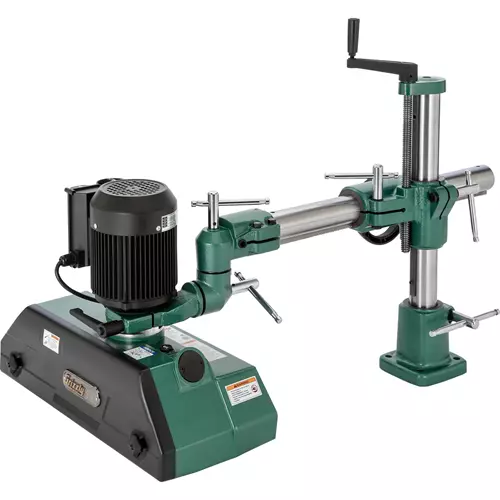

Grizzly G1096 - 1 HP 4-Speed 4-Roller Power Feeder, 3-Phase
Pricing Information
G1096 1 HP 4-Speed 4-Roller Power Feeder, 3-Phase
Upgrade to a power feeder that suits your needs.
If you do any kind of production ripping or milling, you know what a big chore it can be feeding by hand, especially with longer and wider stock.
For those who want to increase production, upgrade or add on another stock feeder, the G1096 Power Feeder will easily move your work along.
SPECIFICATIONS:
- Motor: 1 HP, 220V, 3-phase, 3.4A/2.5A
- Feed speeds: (4) 13, 26, 33, 66 FPM
- Rotation: Forward & reverse
- Max. height of rollers: 8-1/2"
- Min. workpiece length: 6"
- Horizontal travel: 24-1/4"
- Swing: 360°
- Rollers: (4) synthetic rubber, 2-3/8" wide x 4-3/4" dia.
- Roller suspension: 3/4"
- Mounting base size: 3-3/4" x 4-1/4"
- Approximate shipping weight: 152 lbs.
FEATURES:
- Forward/reverse feed
- Multiple feed speeds
- X-, Y-, Z-axis adjustment
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G1096 comes with a 1-year warranty.
Made in an ISO 9001 factory
CSA certified
