- Motor: 1 HP
- Airflow capacity: 500 CFM
- Impeller size: 9 in.
- Filtration: 2.5 Micron
- Filter size: 14-1/2 in. x 24 in. bag
- Intake port(s): 1 x 4 in.
- Sound rating: 83 dB
- Overall height: 63 in.
- Shipping weight: 58 lbs.
Hover to View 1/2 - 1 HP Models
Accessories

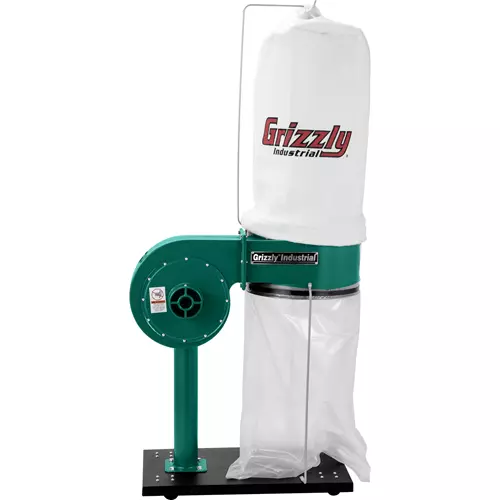

G8027 1 HP Dust Collector
An award-winning dust collector for an incredible price!
The G8027 1 HP Dust Collector was awarded Best Value by WOOD Magazine.
It is a robust, yet portable dust collector with larger collection capacity than any of our other 1 HP models.
It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines.
This dust collector has air suction capacity of 500 CFM and has a max static pressure of 2.76 inches. Static pressure is produced by the 9" balanced steel, radial fin impeller to move the wood chips into the collector.
The filtration rating means it can collect particles down to 2.5-microns. For reference, a human hair is between 50–70 microns in diameter, meaning the G8027 collects particles 30 times smaller!
The G8027 excels as a point-of-use dust collector for collecting from a single machine. It is also a very portable dust collector, so you can take it to the job site where it can handle the jobs a regular shop vacuum can't handle.
Size is perfect for if you have limited space available.
Replacement bags for the G8027 include:
The G8027 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector.
Made in an ISO 9001 factory
ETL certified
SPECIFICATIONS:
- Motor: 1 HP, 110V, single-phase, 7.4A
- Air suction capacity: 500 CFM
- Static pressure: 2.76"
- Bag filtration: 2.5-micron
- Bag capacity: 2.3 cubic feet
- Intake hole size: 4"
- Impeller: 9" balanced steel, radial fin
- Upper bag size: 14-1/2" dia. x 24" D
- Lower bag size: 14-1/2" dia. x 23" D
- Footprint: 15" x 25-1/2"
- Overall dimensions: 25-1/2 W x 15" L x 63" H
- Approximate shipping weight: 58 lbs.
FEATURES:
- 2.5-Micron upper bag filtration
- 9" Steel impeller
- Powder coated paint
- Steel base with casters for mobility
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G8027 comes with a 1-year warranty.
