Item# G0638 Model# G0638

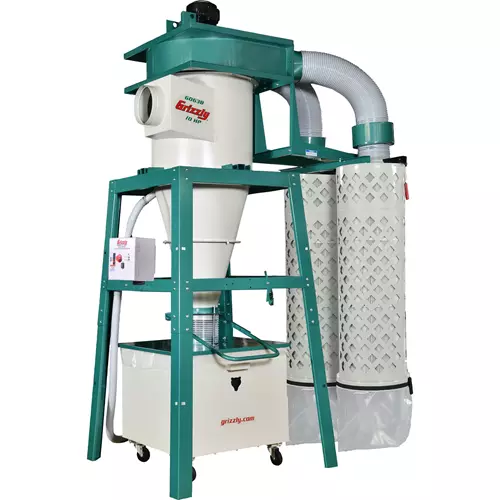

Grizzly G0638 - 10 HP 3-Phase Cyclone Dust Collector

10 HP 3-Phase Cyclone Dust Collector-img-0
10 HP 3-Phase Cyclone Dust Collector-img-1
10 HP 3-Phase Cyclone Dust Collector-img-2
10 HP 3-Phase Cyclone Dust Collector-img-3
10 HP 3-Phase Cyclone Dust Collector-img-4
10 HP 3-Phase Cyclone Dust Collector-img-5
$5,000.00
+$369.00 Freight
+$0.00  Oversize
  • Motor size: 10 HP
  • Airflow capacity: 4029 CFM @ 4.3 in. SP
  • Impeller size: 18-1/2"
  • Filtration: 0.2 – 2 Micron
  • Filter size: 19-11/16" x 59" canister
  • Intake ports: 1 x 12"
  • Sound rating: 87 – 90 dB
  • Overall height: 139-3/8"
  • Shipping weight: 937 lbs.

Hover to View Details

Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

G0638 10 HP 3-Phase Cyclone Dust Collector

The cyclone dust collector for all your woodworking machines.

The G0638 features a whopping 4029 CFM capacity and can handle any large duct system with a static pressure loss less than 16.8".

Dual collection drums minimize the downtime when emptying dust and chips and the noise-reducing exhaust mufflers keep the noise level below 90 dB.

The ramped air intake is so efficient, there is very little fine dust that makes it to the plastic filter bags.

With a 99.9% filter efficiency rating, essentially no dust escapes.

The perfect choice for large shops with multiple woodworking machines operating at the same time, all day long.

The G0638 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read manual makes it easier to assemble and maintain your dust collector.

Like all Grizzly dust collectors, the G0638 comes with a one year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dust collector are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 10 HP, 220V/440V*, 3-phase, 30A/15A,
  • Airflow capacity: 4029 CFM @ 4.3" SP
  • Maximum static pressure: 16.8"
  • Intake hole size: 12"
  • Filter surface area: 398 sq. ft
  • Cartridge filter diameter: 19-11/16" x 2
  • Impeller size: 18-1/2" steel radial fin
  • Sound level: 87-90 dB
  • Filter: Spun bond polyester, 99.9% efficiency from 0.2-2 microns
  • Collection drums: Steel, 55-gallon x 2
  • Stand: 13-gauge steel
  • Cyclone body: 16-gauge steel
  • Blower housing: 11-gauge steel
  • Overall dimensions: 76-3/4" L x 60" W x 139-3/8" H
  • Approximate shipping weight: 937 lbs.

FEATURES:

  • Ramped inlet maximizes dust flow into the collection drums
  • Steel collection drums have casters for easy dust disposal
  • Remote controlled magnetic switch
  • Class "F" motor
  • Dual pleated filters with cleaning brushes maximize air flow
  • Standard equipment mufflers reduce noise level without reducing air flow
  • 16.8" static pressure for greater duct design flexibility
  • Includes stand
  • *This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee of $250. Please contact Grizzly Technical Support at (570)546-9663 before placing your order.
