Item# G0701 Model# G0701

Grizzly G0701 - 19" 5 HP Ultimate Bandsaw

19" 5 HP Ultimate Bandsaw-img-0
19" 5 HP Ultimate Bandsaw-img-1
19" 5 HP Ultimate Bandsaw-img-2
19" 5 HP Ultimate Bandsaw-img-3
19" 5 HP Ultimate Bandsaw-img-4
19" 5 HP Ultimate Bandsaw-img-5
19" 5 HP Ultimate Bandsaw-img-6
$3,750.00
+$199.00 Freight
+$0.00  Oversize
  • Motor: 5 HP
  • Max cutting width: 18-3/8"
  • Max cutting height: 19-1/2"
  • Table size: 24" x 28"
  • Wheel type: Computer-Balanced Cast Iron
  • Blade size: 166" - 168" (3/8" - 1-3/8" wide)
  • Quick blade change: Yes
  • Overall height: 86-1/2"
  • Shipping weight: 810 lbs.

Size

14" 17" 19" 21" 24"

Hover to View Details

Add to Cart
Available to Ship

Recommended For You

Videos
Overview

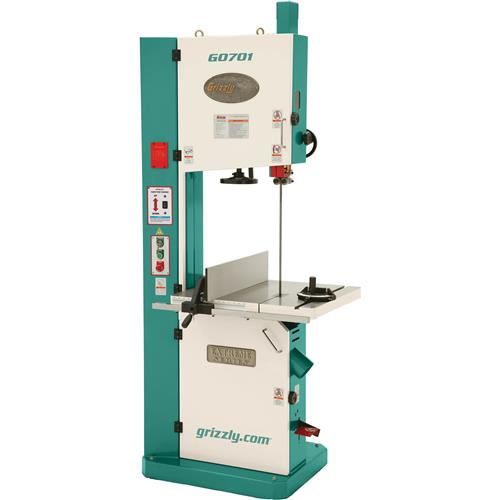

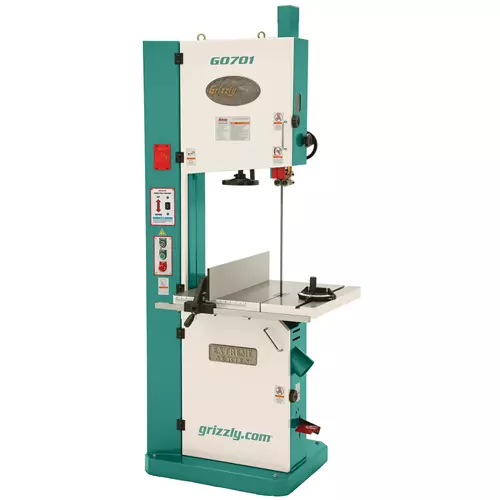

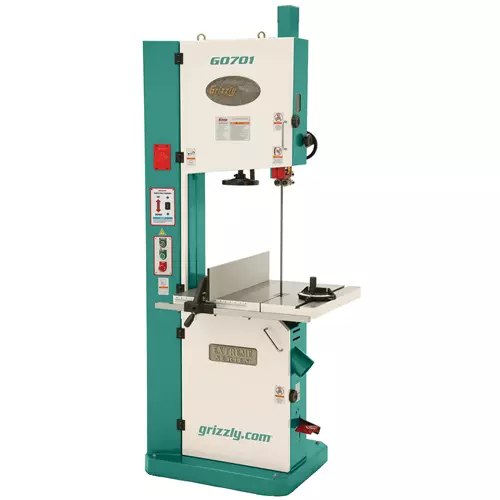

G0701 19" 5 HP Ultimate Bandsaw

Once you get your hands on this bandsaw, you'll agree it's the Ultimate Bandsaw!

The G0701 19" Ultimate Bandsaw is made for production work with its large cutting capacities, foot brake, resaw fence and motorized upper blade guide.

The 5 HP motor powers through wood at a maximum 19-1/2" cutting capacity and the 18-3/8" throat is big enough for most applications.

No more cumbersome two-handed height positioning! Simply toggle the switch up or down for motorized blade guide adjustments.

The G0701 has an extra-wide 28" x 24" cast-iron table that can tilt from 5° left to 45° right. The cast-iron fence includes an extruded-aluminum resaw fence that attaches quickly and supports tall stock exceptionally well. The cast-iron table trunnions add additional weight for greater stability.

You'll also appreciate the computer balanced cast-iron wheels with rubber tires for the smoothest operation possible, blade tension gauge and rack and pinion table tilt adjustment.

The G0701 19" Ultimate Bandsaw is covered by a 1-year warranty covering parts and factory defects. (Consumables such as blades are not included.) Support for this machine is US based and replacement parts are available on-line for shipment from our warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 5 HP, 230V, single-phase, 22A
  • Guide post motor: Universal DC, 40W
  • Cutting capacity/throat: 18-3/8"
  • Maximum cutting height: 19-1/2"
  • Table size: 28" x 24"
  • Table tilt: 5° left, 45° right
  • Floor to table height: 35-1/4"
  • Blade size: 166 – 168" long
  • Blade width range: 3/8 – 1-3/8"
  • Blade speed: 4975 FPM
  • Footprint: 31" x 23-1/2"
  • Overall size: 86-1/2" H x 36-5/8" W x 33" D
  • Approximate shipping weight: 810 lbs.

FEATURES:

  • Rack and pinion, motorized upper blade guide height adjustment
  • Blade tension gauge
  • Height scale for upper blade guides
  • Blade tracking window
  • Dual ball-bearing blade guides
  • Micro adjusting rack and pinion table tilting mechanism w/support post
  • Deluxe cast-iron fence with extruded aluminum resaw fence
  • Included miter gauge
  • Two 4" dust ports
  • Quick-change blade release/tensioning
  • Computer-balanced cast-iron wheels with rubber tires
  • Hinged wheel covers with safety lock
  • Foot brake
  • Cast-iron table trunnion
  • Magnetic switch with thermal overload protection
  • Precision-ground cast-iron table
  • Powder coated paint
  • Includes 1" bandsaw blade and miter gauge
