Item# G5912Z Model# G5912Z

Grizzly G5912Z - 5 HP Professional Spindle Shaper - Z Series

$2,995.00
+$175.00  Freight
+$0.00  Oversize

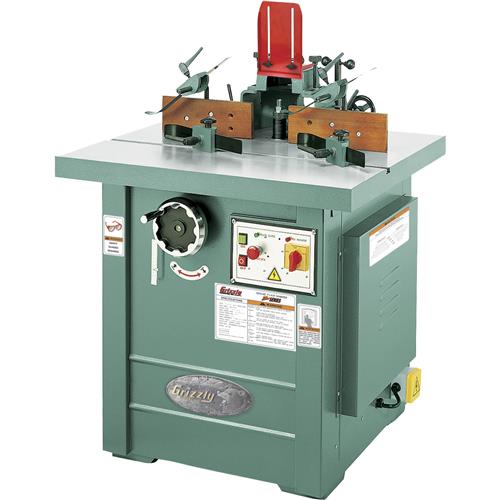

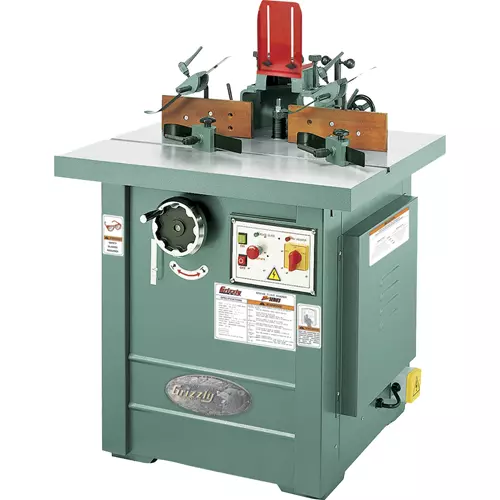

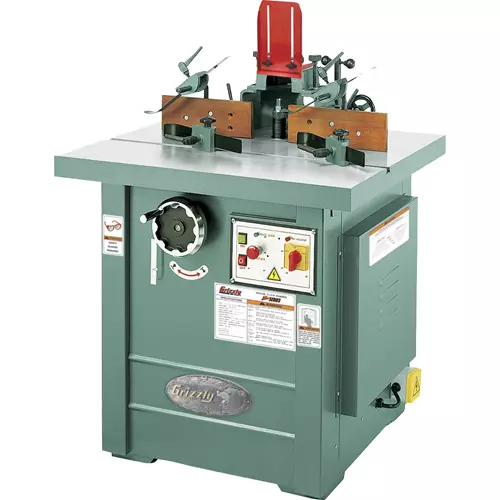

G5912Z 5 HP Professional Spindle Shaper

Turn big shaper cutters with confidence.

The G5912Z 5 HP Professional Spindle Shaper handles cutters up to 5-7/8" diameter by 5-1/8" tall. The four speed V-belt drive system lets you slow down those big cutters from 10,000 RPM to 3600 RPM.

A cutter guard is bolted to the precision-ground cast-iron table. A micro-adjustable wooden split fence lets you dial in for full edge cutting support. Four spring-steel hold downs increase safety and production by holding the workpiece flat on the table and snug against the fence.

The G5912Z comes with three interchangeable spindles 1/2", 3/4" & 1" and three table inserts 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID & 3" OD x 2"ID.

Like all Grizzly shapers, the G5912Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G5912Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your shaper.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the shaper are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 5 HP, 220V, single-phase, 25A
  • Maximum cutter height: 5-1/8"
  • Maximum cutter diameter: 5-7/8"
  • Spindle diameters: 3/4", 1", 1-1/4"
  • Spindle lengths: 6" - 7"
  • Spindle capacity under nut: 4-1/4", 4-5/8", 5-1/8"
  • Spindle speeds: 3600, 5100, 8000, 10,000 RPM
  • Spindle travel: 3-1/4"
  • Spindle openings: 2", 3", 3-1/2", 7"
  • Table counterbore: 7" dia. x 5/8" deep
  • Table size: 28" x 35"
  • Floor-to-table height: 34-3/4"
  • Footprint: 26" x 27"
  • Overall dimensions: 34-3/4" W x 35-1/2" D x 42" H
  • Approx. shipping weight: 604 lbs.

FEATURES:

  • Precision-ground cast-iron table
  • Cast-iron miter gauge adjusts 60° left/right
  • Spindle height scale in inches and millimeters
  • Two wood fence faces
  • Fence adjustment includes built-in ratchets and knob-equipped adjusters
  • Four spring-steel hold-down assemblies
  • Three interchangeable spindles 1/2", 3/4" & 1"
  • Three table inserts: 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID and 3" OD x 2"ID
  • Assorted wrenches included
View More Details
Add to Cart
Available to Ship

Recommended For You

Overview

G5912Z 5 HP Professional Spindle Shaper

Turn big shaper cutters with confidence.

The G5912Z 5 HP Professional Spindle Shaper handles cutters up to 5-7/8" diameter by 5-1/8" tall. The four speed V-belt drive system lets you slow down those big cutters from 10,000 RPM to 3600 RPM.

A cutter guard is bolted to the precision-ground cast-iron table. A micro-adjustable wooden split fence lets you dial in for full edge cutting support. Four spring-steel hold downs increase safety and production by holding the workpiece flat on the table and snug against the fence.

The G5912Z comes with three interchangeable spindles 1/2", 3/4" & 1" and three table inserts 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID & 3" OD x 2"ID.

Like all Grizzly shapers, the G5912Z comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G5912Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your shaper.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the shaper are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 5 HP, 220V, single-phase, 25A
  • Maximum cutter height: 5-1/8"
  • Maximum cutter diameter: 5-7/8"
  • Spindle diameters: 3/4", 1", 1-1/4"
  • Spindle lengths: 6" - 7"
  • Spindle capacity under nut: 4-1/4", 4-5/8", 5-1/8"
  • Spindle speeds: 3600, 5100, 8000, 10,000 RPM
  • Spindle travel: 3-1/4"
  • Spindle openings: 2", 3", 3-1/2", 7"
  • Table counterbore: 7" dia. x 5/8" deep
  • Table size: 28" x 35"
  • Floor-to-table height: 34-3/4"
  • Footprint: 26" x 27"
  • Overall dimensions: 34-3/4" W x 35-1/2" D x 42" H
  • Approx. shipping weight: 604 lbs.

FEATURES:

  • Precision-ground cast-iron table
  • Cast-iron miter gauge adjusts 60° left/right
  • Spindle height scale in inches and millimeters
  • Two wood fence faces
  • Fence adjustment includes built-in ratchets and knob-equipped adjusters
  • Four spring-steel hold-down assemblies
  • Three interchangeable spindles 1/2", 3/4" & 1"
  • Three table inserts: 7" OD x 3-1/2" ID, 3-1/2" OD x 3" ID and 3" OD x 2"ID
  • Assorted wrenches included
