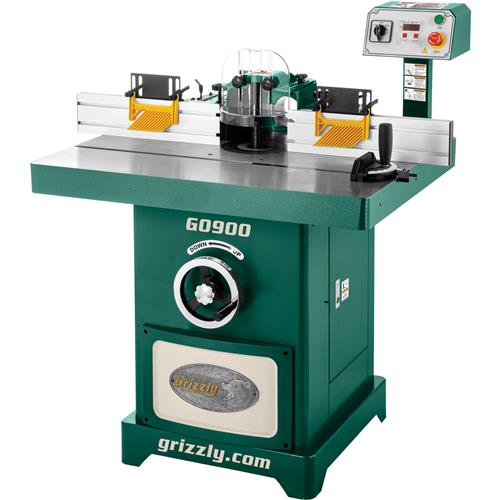

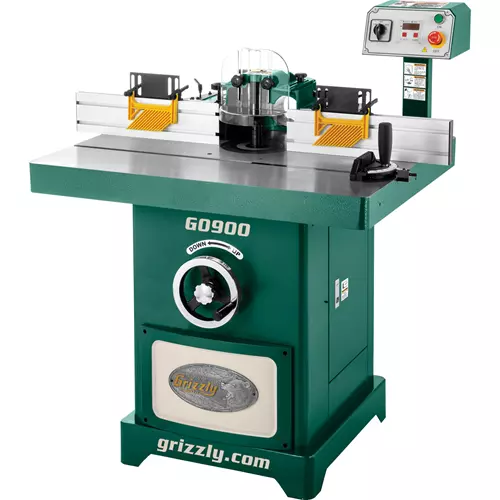

Grizzly G0900 - 5 HP Deluxe Spindle Shaper
G0900 5 HP Deluxe Spindle Shaper
Boost productivity with this feature-rich Spindle Shaper.
The G0900 5 HP Deluxe Spindle Shaper features an extra-large fence that supplies the support you’ll need for those big jobs.
The independent micro-adjustable fence faces let you dial in cut depths with ultimate precision.
To add to this precision, this shaper includes a digital read-out that displays height in imperial or metric scales.
A clear cutter guard enhances visibility and chip extraction. Four feather boards mount directly to the T-slotted fence and table to help keep workpieces on track.
If you want to mount a power feeder for even better control, this shaper includes pre-drilled holes to accommodate one.
The Deluxe Spindle Shaper provides incredible versatility to handle all your shaping needs with three speeds (5000, 7000 and 10,000 RPM), two spindles (3/4" & 1-1/4") and four different spindle openings from 2-1/2" to 7"
The G0900 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.
The G0900 manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your spindle shaper.
The Grizzly Technical Support team is U.S. based. Parts and accessories for the shaper are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.
- Motor: 5 HP, 220V, single-phase, 18A
- Table size: 39-1/4" x 31-1/2"
- Table counterbore: 5-3/4" dia. x 5/8" deep
- Floor-to-table height: 35-1/4"
- Spindle travel: 4"
- Spindle sizes: 3/4" dia. x 3-7/8" and 1-1/4" dia. x 5-7/8"
- Spindle openings: 2-1/4", 4-1/8", 5-1/4", 7"
- Maximum cutter height: 5"
- Maximum cutter diameter: 7"
- Spindle speeds: 5000, 7000 and 10,000 RPM
- Overall size: 39-1/2" L x 35-1/2" W x 50-1/2" H
- Approximate shipping weight: 812 lbs.
- Dual 4" dust ports
- DRO for height positioning
- 4-3/4" aluminum fence with featherboard attachments
- Rack & pinion fence adjustment
- Fence micro-adjustment knobs
- 4" of fence travel
- Power feeder attachment locations (power feeder not included)
- 3 speeds: 5000, 7000, 10,000
- Quick-release belt tensioner
- Poly-V belt drive
- 3/4", 1-1/4" spindles included
- Fully adjustable clear guard
- Open-End Wrenches 14 x 17mm, 22 x 24mm
- Spindle Wrench 50mm
- Hex Wrenches 3, 6mm
- Combo Screwdriver #1
- Starting Pin
- Featherboards for table and fence
