Grizzly T32957 - 52" Sheet Metal Shear
Pricing Information

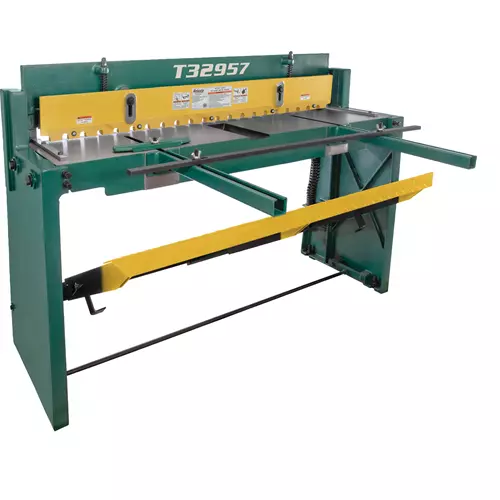

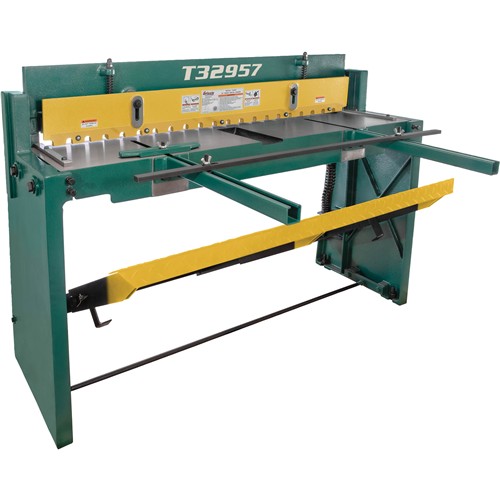

T32957 52" Sheet Metal Shear
Cut your work down to size with this heavy-duty shear.
The T32957 Sheet Metal Shear cuts up to 52" wide with all the precision you'd expect from a machine this size.
Features a heavy cast-iron body with foot control, a precision-ground steel blade, a spring-activated hold down, and a safety guard.
The front stop and angle guide are quickly adjusted by wing nuts on the top of the stops.
The rear extension arms have micro-adjusting stops that allow you to fine tune your cut length.
Also includes table gauges and front extension arms for those really large sheet metal jobs.
SPECIFICATIONS
- Maximum capacity: 52"
- Mild steel capacity full width: 18-gauge
- Mild steel capacity half width: 16-gauge
- Front stop scale range: 0"–12-1/2"
- Back stop scale range: 0"–33"
- Footprint: 60" x 21"
- Overall shipping dimensions: 62" W x 74" D x 42" H
- Approximate shipping weight: 1120 lbs.
FEATURES:
- 52" wide capacity
- Precision-ground steel shear blade
- Rear extension arms with micro-adjusting stops
- Blade guard doubles as a hold-down clamp
- Bevel gauge to support workpieces with angled front edge
- Steel frame
- Foot control
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T32957 comes with a 1-year warranty.
