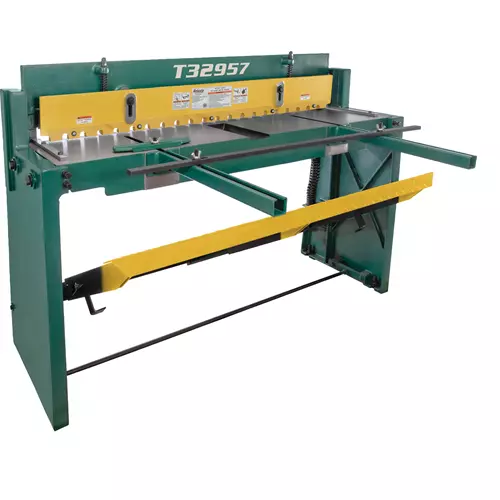

T32957 52" Sheet Metal Shear

Cut your work down to size with this heavy-duty shear.

The T32957 Sheet Metal Shear cuts up to 52" wide with all the precision you'd expect from a machine this size.

Features a heavy cast-iron body with foot control, a precision-ground steel blade, a spring-activated hold down, and a safety guard.

The front stop and angle guide are quickly adjusted by wing nuts on the top of the stops.

The rear extension arms have micro-adjusting stops that allow you to fine tune your cut length.

Also includes table gauges and front extension arms for those really large sheet metal jobs.

SPECIFICATIONS

• Maximum capacity: 52"
• Mild steel capacity full width: 18-gauge
• Mild steel capacity half width: 16-gauge
• Front stop scale range: 0"–12-1/2"
• Back stop scale range: 0"–33"
• Footprint: 60" x 21"
• Overall shipping dimensions: 62" W x 74" D x 42" H
• Approximate shipping weight: 1120 lbs.

FEATURES:

• 52" wide capacity
• Precision-ground steel shear blade
• Rear extension arms with micro-adjusting stops
• Blade guard doubles as a hold-down clamp
• Bevel gauge to support workpieces with angled front edge
• Steel frame
• Foot control

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the T32957 comes with a 1-year warranty.

Made in an ISO 9001 factory
