Item# G0686 Model# G0686

Grizzly G0686 - Large Drill Bit Grinder

$2,299.95
+$75.00  Shipping
+$0.00  Oversize

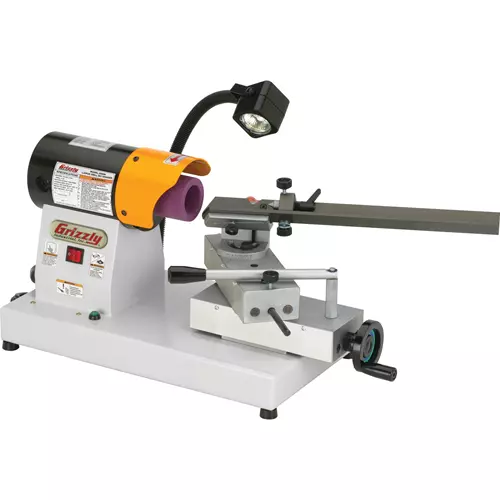

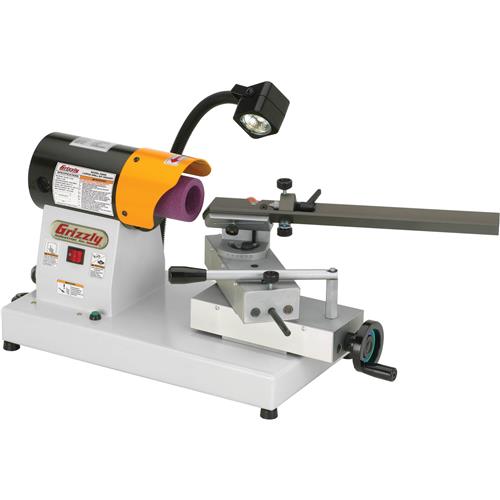

G0686 Large Drill Bit Grinder

Make quick work of all your large drill bit sharpening needs.

The G0686 Large Drill Bit Grinder is designed to sharpen the cutting edges and point angle of 2-flute, twisted large drill bits from 5/8" to 2" in diameter.

It can quickly set the drill angle from 50°–150° with the easy-to-read scale.

The design is very user-friendly. Slip in a drill bit and adjust the tailstock center.

Adjust the drill bit so one chisel is level and touch the flute with the locating pin.

Advance the drill bit into the bore of the grinding wheel with the calibrated handwheel and you’re ready to go!

The swing arm allows precise motion through the grinding procedure and the grinding wheel bore provides beautifully finished cutting edges.

The built-in LED work light illuminates where you need it; especially where the grinding wheel and drill bit meet.

Like all of the Grizzly grinders, the G0686 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0686 manual was written by our U.S. based Documentation Department is packed with useful information.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the grinder may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • 1/2 HP, 110V, single-phase, 4.5A
  • Spindle speed: 6800 RPM
  • Drill bit diameter capacity: 5/8"–2"
  • Miter angle: 50°–150°
  • Footprint: 11" x 20"
  • Overall size: 15-1/2" W x 25" D x 19" H
  • Approximate shipping weight: 77 lbs.

FEATURES:

  • Unique stroke arm with 2-way adjustable stops
  • Calibrated infeed handwheel
  • 16" Drill tray
  • 2-Axis adjustable center
  • Halogen work light
  • M14-1.5 threaded arbor

INCLUDES:

  • 60mm OD x 35mm ID x 65mm W
  • 70mm OD x 54mm ID x 65mm W
View More Details
Add to Cart
Ready to Ship!
View Showroom Availability
Showroom Pickup Availability

Accessories

Recommended For You

Overview

G0686 Large Drill Bit Grinder

Make quick work of all your large drill bit sharpening needs.

The G0686 Large Drill Bit Grinder is designed to sharpen the cutting edges and point angle of 2-flute, twisted large drill bits from 5/8" to 2" in diameter.

It can quickly set the drill angle from 50°–150° with the easy-to-read scale.

The design is very user-friendly. Slip in a drill bit and adjust the tailstock center.

Adjust the drill bit so one chisel is level and touch the flute with the locating pin.

Advance the drill bit into the bore of the grinding wheel with the calibrated handwheel and you’re ready to go!

The swing arm allows precise motion through the grinding procedure and the grinding wheel bore provides beautifully finished cutting edges.

The built-in LED work light illuminates where you need it; especially where the grinding wheel and drill bit meet.

Like all of the Grizzly grinders, the G0686 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0686 manual was written by our U.S. based Documentation Department is packed with useful information.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the grinder may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • 1/2 HP, 110V, single-phase, 4.5A
  • Spindle speed: 6800 RPM
  • Drill bit diameter capacity: 5/8"–2"
  • Miter angle: 50°–150°
  • Footprint: 11" x 20"
  • Overall size: 15-1/2" W x 25" D x 19" H
  • Approximate shipping weight: 77 lbs.

FEATURES:

  • Unique stroke arm with 2-way adjustable stops
  • Calibrated infeed handwheel
  • 16" Drill tray
  • 2-Axis adjustable center
  • Halogen work light
  • M14-1.5 threaded arbor

INCLUDES:

  • 60mm OD x 35mm ID x 65mm W
  • 70mm OD x 54mm ID x 65mm W
